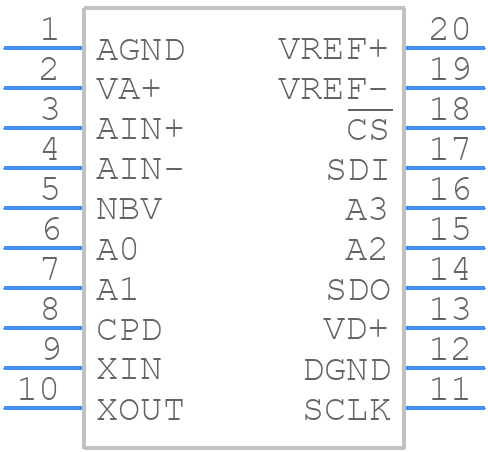

CS5525-ASZ - Cirrus Logic

CS5525-ASZ Details

• Manufacturer Part Number:

  CS5525-ASZ

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  SSOP

• Package Description:

  0.200 INCH, LEAD FREE, PLASTIC, SSOP-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.30

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Cirrus Logic

• YTEOL:

  0

• Analog Input Voltage-Max:

  5 V

• Analog Input Voltage-Min:

  -2.1 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  7.2 mm

• Linearity Error-Max (EL):

  0.003%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.05 MHz

• Seated Height-Max:

  2.13 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
