The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures proper internal biasing and prevents latch-up.
To minimize noise and EMI, keep analog and digital traces separate, use a solid ground plane, and place decoupling capacitors close to the device. Also, avoid running digital traces near analog inputs.
The maximum allowed capacitance on the analog input pins is 10nF. Exceeding this value may affect the device's performance and accuracy.
The CS5529-ASZ has an internal clock that can be synchronized with an external clock source. Use the CLKIN pin to connect an external clock, and ensure the clock frequency is within the specified range (typically 10-40 MHz).
The recommended operating temperature range for the CS5529-ASZ is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5529-ASZ Overview

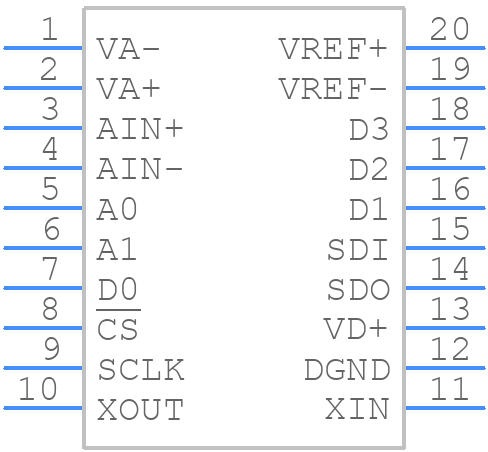

Use the download button to access the CS5529-ASZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS552,
or try a keyword search, such as Analog to Digital Converters
