The recommended layout and routing for the CS5530-ISZ can be found in the Cirrus Logic application note AN215. It provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
The CS5530-ISZ has a programmable gain amplifier (PGA) that can be configured for different gain settings using the SPI interface. The gain settings can be programmed using the PGA_GAIN register (address 0x01). Refer to the datasheet for the gain setting values and programming details.
The recommended power-up sequence for the CS5530-ISZ is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry to prevent any potential latch-up conditions.
To troubleshoot issues with the CS5530-ISZ, start by checking the power supply voltages, clock signals, and digital interface signals. Use an oscilloscope to verify the signal integrity and check for any signs of noise or distortion. Also, review the device's register settings and configuration to ensure they are correct. If the issue persists, contact Cirrus Logic support for further assistance.
The CS5530-ISZ has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve the thermal conductivity between the device and the PCB. Additionally, ensure good airflow around the device to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5530-ISZ Overview

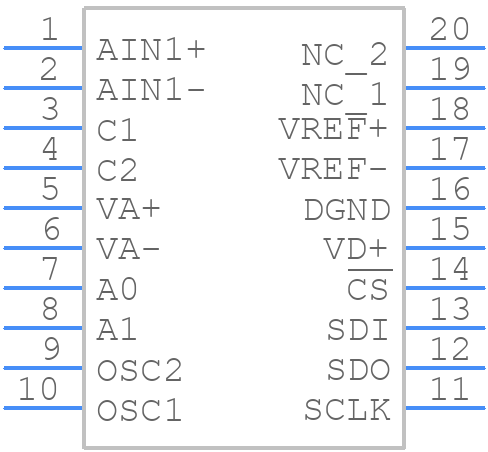

Use the download button to access the CS5530-ISZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS553,
or try a keyword search, such as Analog to Digital Converters
