The recommended layout and placement for the CS5531-ASZ can be found in the Cirrus Logic application note AN215. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
To optimize the performance of the CS5531-ASZ, ensure that the input signals are properly filtered and decoupled, and that the power supply is clean and stable. Additionally, follow the recommended layout and placement guidelines, and use a low-ESR capacitor for the VDD pin.
The CS5531-ASZ has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to +105°C for short periods of time, but this may affect its reliability and lifespan.
To troubleshoot issues with the CS5531-ASZ, start by checking the power supply and input signals for noise and distortion. Verify that the device is properly configured and that the clock signals are stable. Use an oscilloscope to monitor the output signals and check for any signs of oscillation or instability.
While the CS5531-ASZ is primarily designed for audio applications, its high-speed and low-noise characteristics make it suitable for other high-frequency applications, such as instrumentation, medical devices, and industrial control systems. However, ensure that the device is properly configured and characterized for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5531-ASZ Overview

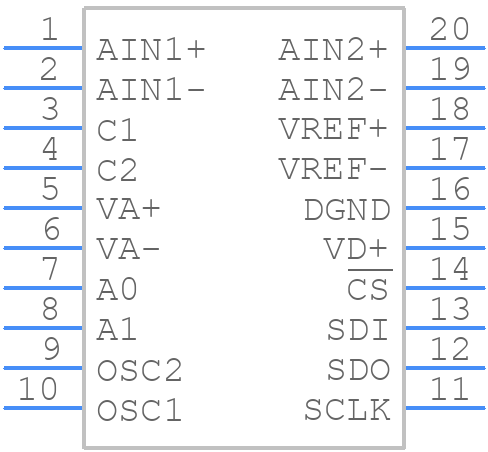

Use the download button to access the CS5531-ASZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS553,
or try a keyword search, such as Analog to Digital Converters
