The recommended layout and routing for the CS5532-ASZ can be found in the Cirrus Logic application note AN215. It provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
To optimize the performance of the CS5532-ASZ in a noisy environment, ensure proper grounding, use a low-pass filter on the input, and add a ferrite bead or common-mode choke to the power supply lines. Additionally, use a shielded enclosure and keep the analog and digital grounds separate.
The maximum input voltage that the CS5532-ASZ can handle is 5.5V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage is within the recommended range to maintain the device's reliability and performance.
To troubleshoot issues with the CS5532-ASZ, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signal integrity and check for any signs of noise or distortion. Use an oscilloscope to analyze the output signal and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The CS5532-ASZ is rated for operation up to 85°C. However, it's essential to ensure proper thermal management and heat dissipation to prevent overheating. Consult the datasheet for thermal characteristics and guidelines for high-temperature operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5532-ASZ Overview

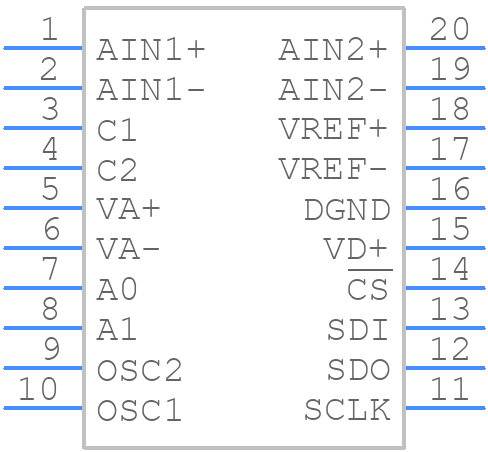

Use the download button to access the CS5532-ASZ schematic symbol, PCB footprint, and 3D model.
