CS5534-BSZ - Cirrus Logic

Description: Analog to Digital Converters - ADC 4-Ch 24-Bit ADCs w/ Ultra Low Noise PGIA

Download CS5534-BSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

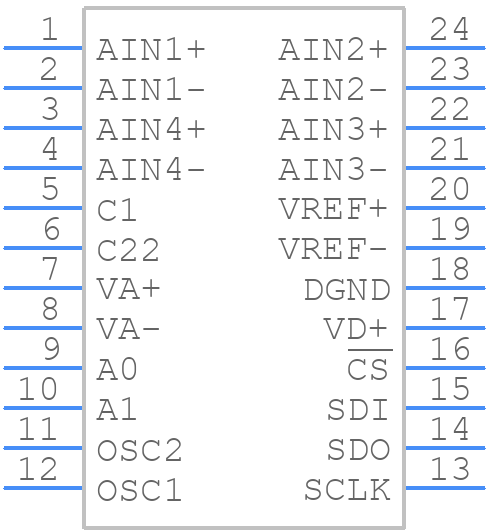

Symbol
CS5534-BSZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS5534-BSZ - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - PIN SSOP PACKAGE DRAWING
click to zoom
3D Models
CS5534-BSZ - Cirrus Logic - 3D model - Small Outline Packages - PIN SSOP PACKAGE DRAWING
click to zoom

CS5534-BSZ Details

  • Manufacturer Part Number:

    CS5534-BSZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    24

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.00384 MHz

  • Seated Height-Max:

    2.13 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

CS5534-BSZ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the CS5534-BSZ can be found in the Cirrus Logic application note AN215. It provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
  • The CS5534-BSZ can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, sample rate, and bit depth. Refer to the datasheet and the I2C programming guide for more information.
  • The recommended power-up sequence for the CS5534-BSZ is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). The power-up sequence is critical to ensure proper device operation and prevent damage.
  • To troubleshoot issues with the CS5534-BSZ, start by checking the power supply voltages, clock signals, and digital control signals. Use an oscilloscope to verify the analog output signals and check for any signs of distortion or noise. Refer to the datasheet and application notes for troubleshooting guides and FAQs.
  • The CS5534-BSZ has a thermal pad on the bottom of the package that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Refer to the datasheet and thermal management application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS5534-BSZ Overview

Use the download button to access the CS5534-BSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS553, or try a keyword search, such as Analog to Digital Converters
