CS82C52Z footprint, schematic symbol and 3D model by Renesas Electronics

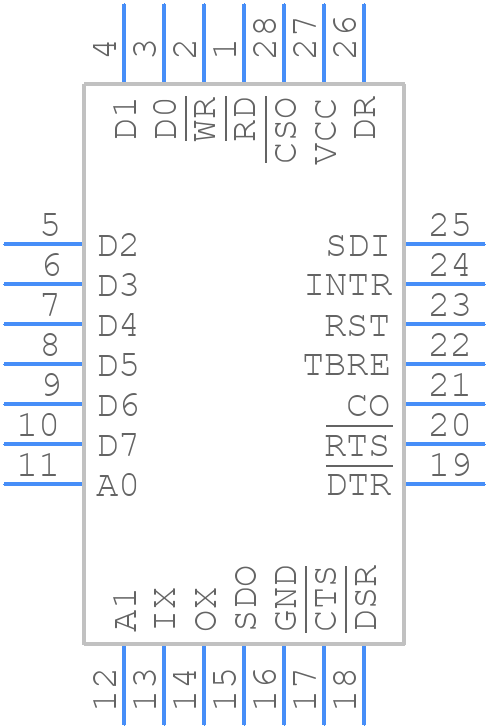

Symbol

click to zoom

PCB Footprints

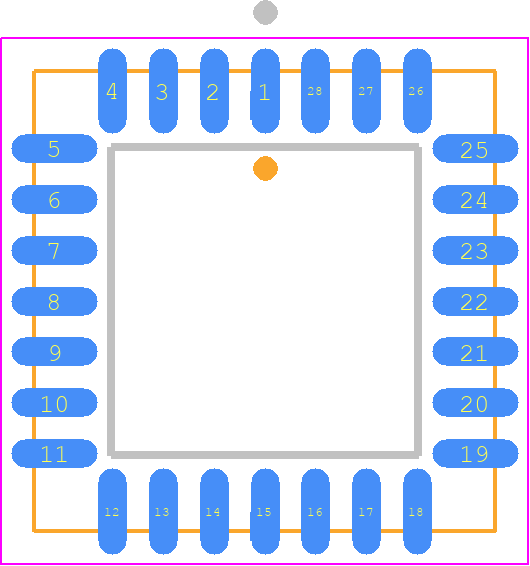

CS82C52Z - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - N28.45_

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CS82C52Z
Part Number CS82C52Z
Manufacturer Renesas Electronics
Pin Count 28
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - N28.45_
Released Date Dec 31, 2019
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

CS82C52Z Details

Manufacturer Part Number:
CS82C52Z
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
PLCC
Pin Count:
28
Manufacturer Package Code:
N28.45
ECCN Code:
EAR99
HTS Code:
8542.31.00.30
Factory Lead Time:
4 Weeks
Date Of Intro:
2018-07-18
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Address Bus Width:
2
Boundary Scan:
NO
Bus Compatibility:
80C86; 80C88
Clock Frequency-Max:
16 MHz
Communication Protocol:
ASYNC, BIT
External Data Bus Width:
8
JESD-30 Code:
S-PQCC-N28
JESD-609 Code:
e3
Low Power Mode:
YES
Moisture Sensitivity Level:
3
Number of Serial I/Os:
1
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
245
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
uPs/uCs/Peripheral ICs Type:
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

CS82C52Z Frequently Asked Questions (FAQs)

The recommended POR timing is to hold the reset pin low for at least 10 clock cycles after the power supply voltage reaches the minimum operating voltage (VCC(min)). This ensures that the device is properly reset and configured for normal operation.
The UART baud rate on the CS82C52Z is configured using the Timer 1 overflow interrupt. The timer is used to divide the oscillator frequency to generate the desired baud rate. The specific configuration depends on the oscillator frequency and the desired baud rate.
The maximum clock frequency supported by the CS82C52Z is 24 MHz. However, the device can operate at lower frequencies, and the clock frequency can be divided using the clock divider feature.
The watchdog timer on the CS82C52Z is used to detect and recover from system failures. It can be enabled and configured using the watchdog timer control register. The watchdog timer can be reset using a timer overflow or a software reset.
The BOD feature on the CS82C52Z is used to detect and respond to voltage drops or brown-out conditions. When a brown-out condition is detected, the device can be configured to reset or enter a power mode to prevent data corruption or system failure.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CS82C52Z Overview

Use the download button to access the CS82C52Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CS82C, or try a keyword search, such as Serial IO/Communication Controllers
