CS82C52Z96 - Renesas Electronics

CS82C52Z96 Details

• Manufacturer Part Number:

  CS82C52Z96

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

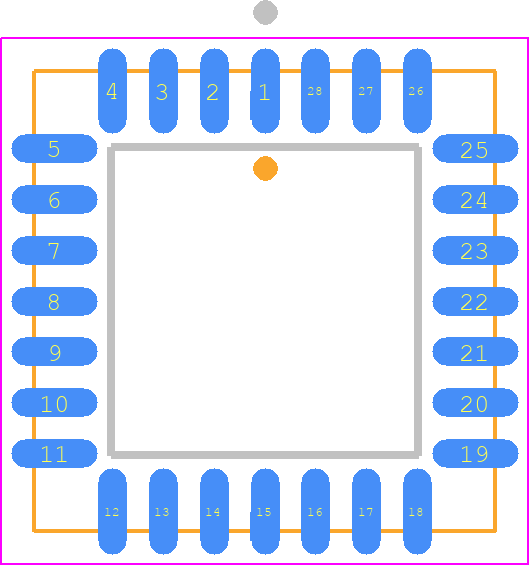

• Part Package Code:

  PLCC

• Pin Count:

  28

• Manufacturer Package Code:

  N28.45

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.30

• Date Of Intro:

  2018-07-18

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Address Bus Width:

  2

• Boundary Scan:

  NO

• Bus Compatibility:

  80C86; 80C88

• Clock Frequency-Max:

  16 MHz

• Communication Protocol:

  ASYNC, BIT

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-N28

• JESD-609 Code:

  e3

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  NO LEAD

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
