The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (AVCC and DVCC). This ensures proper device operation and prevents latch-up.
To optimize analog performance, ensure that the analog power supplies (AVCC and DVCC) are well-filtered and decoupled, and that the analog input signals are properly terminated and filtered. Additionally, use a low-noise, low-impedance clock source and ensure that the device is operated within its recommended operating conditions.
The CS8414-CSZ supports clock frequencies up to 192 kHz, but the maximum frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and application notes for more information.
The CS8414-CSZ can be configured for master or slave mode by setting the M/S pin high or low, respectively. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
The digital filter in the CS8414-CSZ is used to reject out-of-band noise and improve the signal-to-noise ratio (SNR) of the analog-to-digital conversion process. It can be programmed to different filter coefficients to optimize performance for specific applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS8414-CSZ Overview

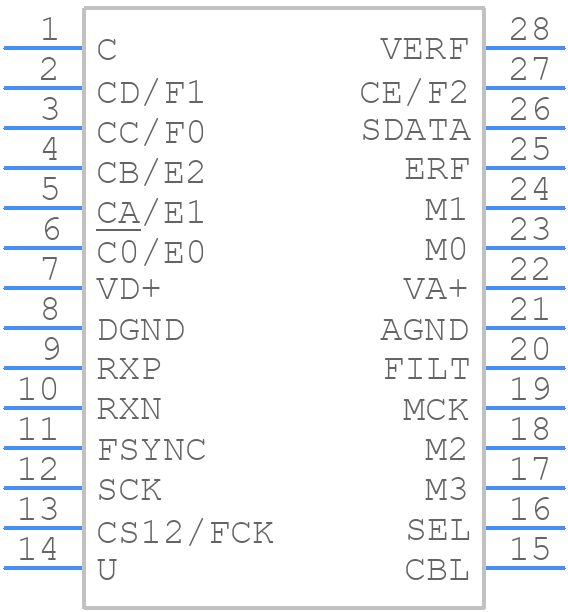

Use the download button to access the CS8414-CSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS841,
or try a keyword search, such as Other Consumer ICs
