CS8416K-CNZ - Cirrus Logic

Description: Audio Transmitters, Receivers, Transceivers 192kHz Digital Audio Receiver

Download CS8416K-CNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

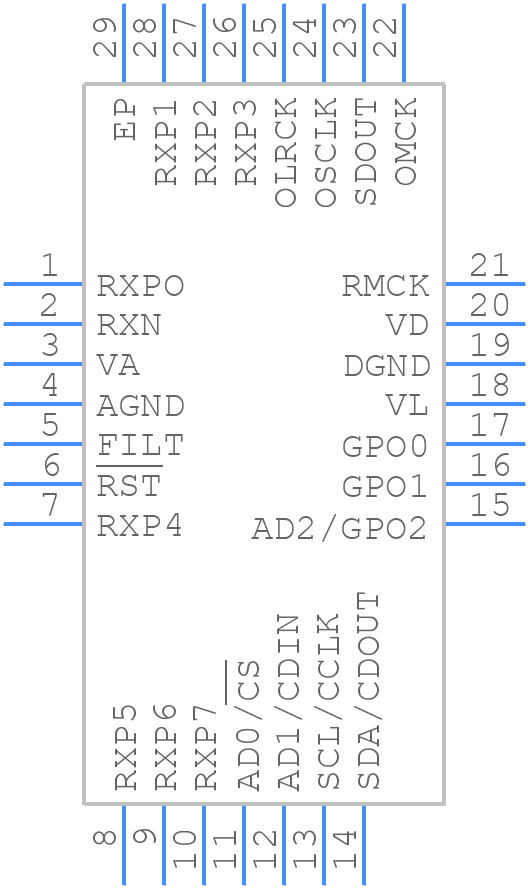

CS8416K-CNZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS8416K-CNZ - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-PIN QFN(5 x 5mm body)
click to zoom
3D Models
CS8416K-CNZ - Cirrus Logic - 3D model - Quad Flat No-Lead - 28-PIN QFN(5 x 5mm body)
click to zoom

CS8416K-CNZ Details

  • Manufacturer Part Number:

    CS8416K-CNZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Cirrus Logic

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N28

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.46 V

  • Supply Voltage-Min (Vsup):

    3.13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

CS8416K-CNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • To configure the CS8416K-CNZ for master mode operation, set the M/S pin high and ensure that the BCK pin is driven by the CS8416K-CNZ. Additionally, configure the device for the desired clock frequency and format.
  • The CS8416K-CNZ supports clock frequencies up to 192 kHz. However, the maximum frequency may vary depending on the specific application and system requirements.
  • The CS8416K-CNZ provides error flags and interrupts to handle errors and exceptions. The device can be configured to generate interrupts on errors such as FIFO overflows, underflows, and parity errors. The error flags can be polled or cleared using the device's control registers.
  • The recommended layout and routing for the CS8416K-CNZ involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing signal traces near the device's clock and data pins. Additionally, ensure that the device's power supply pins are decoupled with capacitors and that the layout is symmetrical to reduce noise and EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS8416K-CNZ Overview

Use the download button to access the CS8416K-CNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS841, or try a keyword search, such as Other Consumer ICs
