CS8420-CSZ - Cirrus Logic

Description: Audio Sample Rate Converters Digital Audio Sample Rate Converter

Download CS8420-CSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

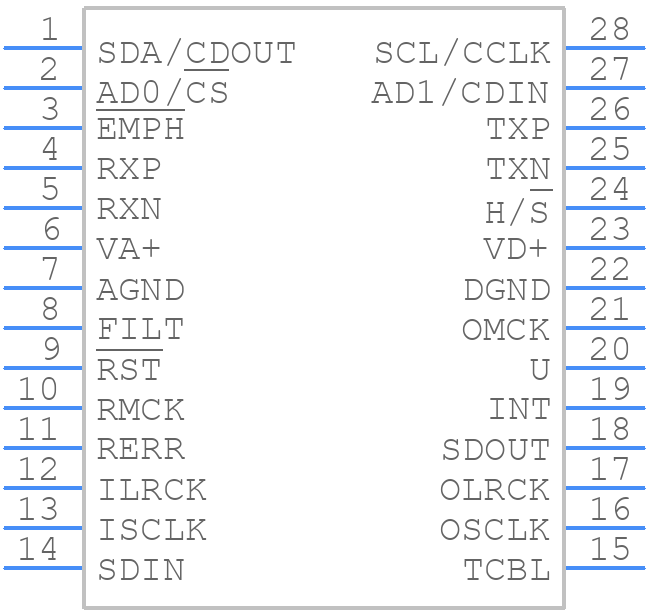

CS8420-CSZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS8420-CSZ - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - 28L SOIC (300 MIL BODY)
click to zoom
3D Models
CS8420-CSZ - Cirrus Logic - 3D model - Small Outline Packages - 28L SOIC (300 MIL BODY)
click to zoom

CS8420-CSZ Details

  • Manufacturer Part Number:

    CS8420-CSZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP28,.4

  • Pin Count:

    28

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

CS8420-CSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
  • To optimize analog performance, ensure proper PCB layout, use a low-ESR capacitor for the VDDA decoupling, and keep the analog and digital grounds separate. Additionally, use a high-quality clock source and ensure the clock signal is clean and stable.
  • The CS8420-CSZ supports clock frequencies up to 192 kHz. However, the maximum frequency may vary depending on the specific application and system requirements.
  • The CS8420-CSZ can be configured for Master or Slave mode by setting the appropriate pin connections and register settings. Refer to the datasheet and application notes for specific configuration details.
  • The digital filter is used to reject out-of-band noise and improve the overall signal-to-noise ratio. The filter can be configured through register settings, and the specific configuration depends on the application requirements and desired filter response.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS8420-CSZ Overview

Use the download button to access the CS8420-CSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS842, or try a keyword search, such as Other Consumer ICs
