CS8422-CNZ - Cirrus Logic

Description: CS8422-CNZ, Sample Rate Converter, 24 bit- 192kHz, 32-Pin QFN

Download CS8422-CNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

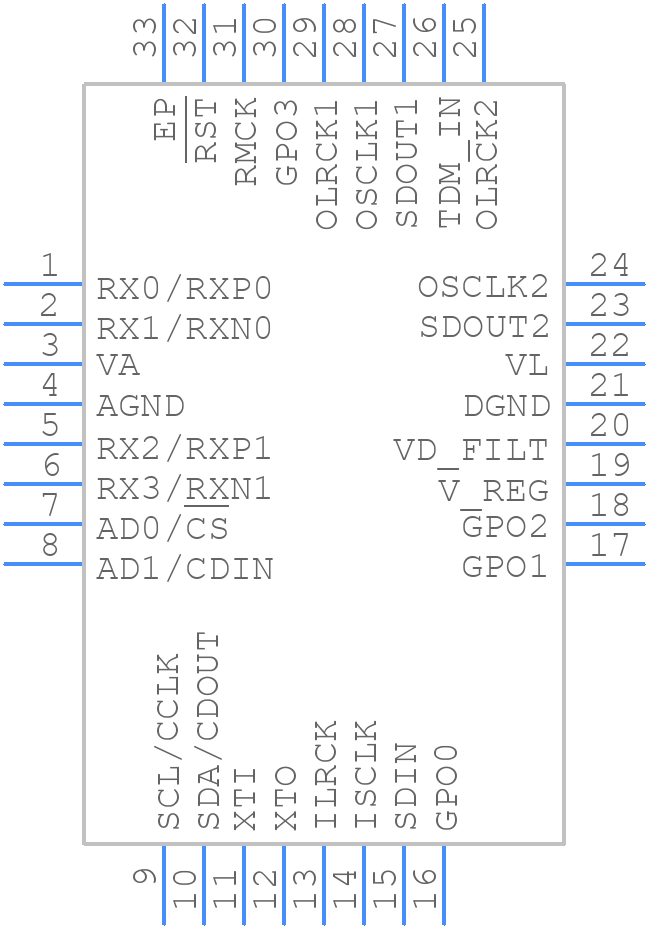

CS8422-CNZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS8422-CNZ - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32--+
click to zoom
3D Models
CS8422-CNZ - Cirrus Logic - 3D model - Quad Flat No-Lead - QFN-32--+
click to zoom

CS8422-CNZ Details

  • Manufacturer Part Number:

    CS8422-CNZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, LEAD FREE, MO-220, QFN-32

  • Pin Count:

    32

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

CS8422-CNZ Frequently Asked Questions (FAQs)

  • The recommended clock frequency for the CS8422-CNZ is 256 fs (where fs is the sample frequency), which is typically 12.288 MHz for 48 kHz sample rate.
  • To configure the CS8422-CNZ for TDM mode, set the TDM pin high and ensure the TDMEN bit in the Control Register is set to '1'. Additionally, configure the TDM frame size and slot size according to your specific requirements.
  • The maximum cable length supported by the CS8422-CNZ for AES3 transmission is approximately 100 meters, assuming a high-quality, shielded cable with a characteristic impedance of 110 ohms.
  • To implement channel bonding with the CS8422-CNZ, configure the device to transmit multiple AES3 channels over a single link. This requires setting the Channel Bonding Enable bit in the Control Register and configuring the channel bonding mode according to your specific requirements.
  • The power consumption of the CS8422-CNZ in standby mode is typically around 10-15 mW, depending on the specific operating conditions and configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS8422-CNZ Overview

Use the download button to access the CS8422-CNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS842, or try a keyword search, such as Other Consumer ICs
