CSD22204W - Texas Instruments

Description: -8V, P ch NexFET MOSFET™, single WLP 1.5x1.5, 9.9mOhm

Download CSD22204W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

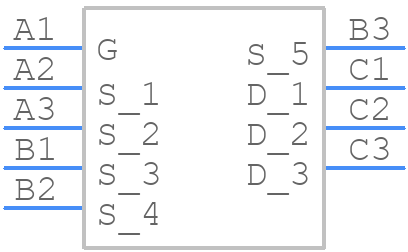

Symbol
CSD22204W - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CSD22204W - Texas Instruments PCB footprint - BGA - BGA - YZF(R-XBGA-N81)
click to zoom
3D Models
CSD22204W - Texas Instruments - 3D model - BGA - YZF(R-XBGA-N81)
click to zoom

CSD22204W Details

  • Manufacturer Part Number:

    CSD22204W

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND RESISTOR

  • DS Breakdown Voltage-Min:

    8 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.014 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    265 pF

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.7 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

CSD22204W Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the CSD22204W is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
  • To ensure proper biasing, connect the gate-source voltage (VGS) to a voltage source that is within the recommended range (typically 4.5V to 10V) and use a gate resistor (RG) with a value between 1kΩ to 10kΩ to limit the gate current.
  • For optimal thermal management, use a PCB with a thermal pad and a heat sink. Ensure the drain pad is connected to a large copper area to dissipate heat efficiently. Keep the PCB layout compact and symmetrical to minimize parasitic inductance and capacitance.
  • To protect the CSD22204W from ESD, use ESD-sensitive handling procedures, such as wearing an anti-static wrist strap or using an anti-static mat. Ensure the device is stored in an anti-static bag or tube, and use ESD-protected equipment during assembly and testing.
  • The maximum allowable power dissipation for the CSD22204W is 100W, but it's recommended to operate within 50W to ensure reliable operation and prevent overheating.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CSD22204W Overview

Use the download button to access the CSD22204W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD22, or try a keyword search, such as Power Field-Effect Transistors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
