CSD22206W - Texas Instruments

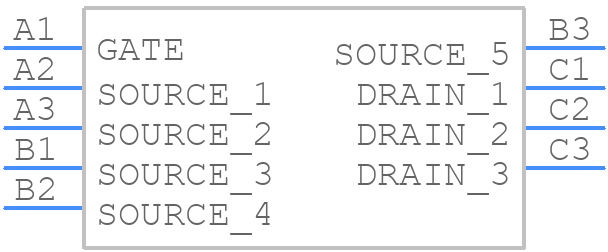

CSD22206W Details

• Manufacturer Part Number:

  CSD22206W

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8541.29.00.95

• Date Of Intro:

  2017-05-23

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ULTRA LOW RESISTANCE

• Configuration:

  SINGLE WITH BUILT-IN DIODE AND RESISTOR

• DS Breakdown Voltage-Min:

  8 V

• Drain Current-Max (ID):

  5 A

• Drain-source On Resistance-Max:

  0.0091 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  440 pF

• JESD-30 Code:

  S-PBGA-B9

• JESD-609 Code:

  e1

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  9

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  P-CHANNEL

• Power Dissipation-Max (Abs):

  1.7 W

• Pulsed Drain Current-Max (IDM):

  108 A

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
