- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CSD25201W15
- Part Number CSD25201W15
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - BGA9C50P3X3_150X150X62
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
CSD25201W15 Details
-
Manufacturer Part Number:
CSD25201W15
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
BGA
-
Package Description:
1.50 X 1.50 MM, DSBGA-9
-
Pin Count:
9
-
ECCN Code:
EAR99
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
CSD25201W15 Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the high-frequency signals away from the power supply, using a solid ground plane, and minimizing trace lengths. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper biasing, follow the recommended operating conditions in the datasheet. Make sure to provide a stable voltage supply, and use a suitable bias resistor (RBIAS) to set the desired bias point. Additionally, ensure that the input signals are within the recommended common-mode voltage range.
-
The CSD25201W15 is specified to operate up to 1 GHz, but the actual operating frequency may be limited by the specific application, PCB layout, and signal integrity. It's essential to evaluate the device's performance in your specific use case to determine the maximum operating frequency.
-
The CSD25201W15 has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from high-temperature sources. Additionally, follow good thermal design practices, such as using thermal vias and thermal layers in the PCB.
-
The CSD25201W15 has a human-body model (HBM) ESD rating of 2 kV. To ensure reliable operation, it's recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output pins. Additionally, follow good ESD handling practices during assembly and testing.
Trust Checks
System Verified
CSD25201W15 Overview

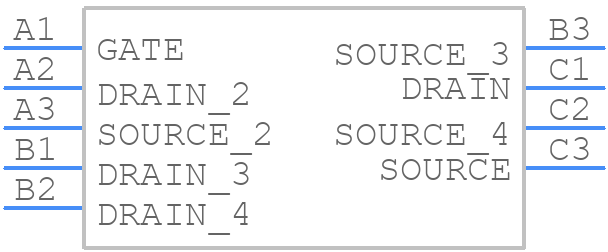

Use the download button to access the CSD25201W15 schematic symbol and PCB footprint.
