Part Image

CSD87313DMST - Texas Instruments

Description: 30V, N ch NexFET MOSFET™, dual common drain SON3x3, 5.5mOhm

Download ECAD Model

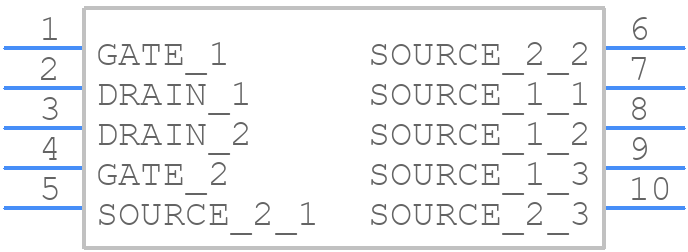

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CSD87313DMST - Texas Instruments PCB footprint - Other - Other - CSD87313DMST-2
click to zoom

3D Models

CSD87313DMST - Texas Instruments  - 3D model - Other - CSD87313DMST-2
click to zoom

CSD87313DMST Details

  • Manufacturer Part Number:

    CSD87313DMST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMALL OUTLINE, S-PDSO-N6

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.93

  • Samacsys Modified On:

    2021-08-02 16:02:48

  • YTEOL:

    15

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    67 mJ

  • Case Connection:

    SOURCE

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    200 pF

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

CSD87313DMST Overview

Use the download button to access the CSD87313DMST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD87, or try a keyword search, such as Power Field-Effect Transistors
