CSD87353Q5D - Texas Instruments

Description: 30V, Nch synchronous buck NexFET MOSFET™, SON5x6 PowerBlock, 40A

Download CSD87353Q5D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

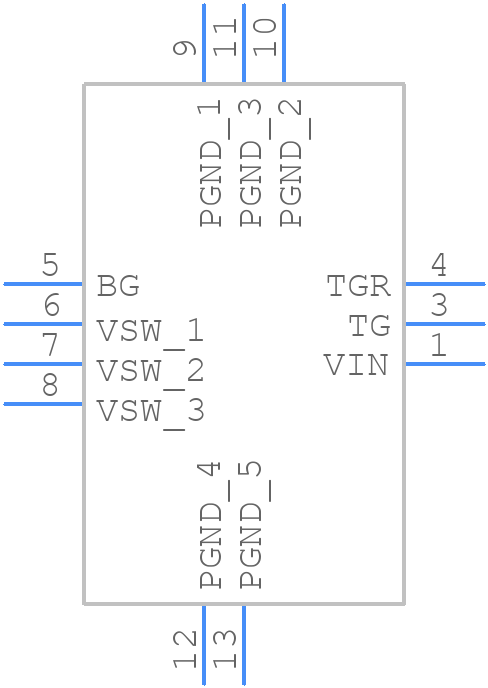

CSD87353Q5D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CSD87353Q5D - Texas Instruments PCB footprint - Other - Other - CSD87353Q5D-2
click to zoom
3D Models
CSD87353Q5D - Texas Instruments - 3D model - Other - CSD87353Q5D-2
click to zoom

CSD87353Q5D Details

  • Manufacturer Part Number:

    CSD87353Q5D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    27 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    120 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CSD87353Q5D Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the CSD87353Q5D is -40°C to 150°C.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet, and consider using a voltage regulator to maintain a stable voltage supply.
  • For optimal thermal performance, use a multi-layer PCB with a solid ground plane, and consider using thermal vias and heat sinks to dissipate heat. Follow Texas Instruments' recommended PCB layout guidelines for the CSD87353Q5D.
  • Use a logic analyzer or oscilloscope to monitor the device's signals, and consult the datasheet and application notes for troubleshooting guidelines. Check for proper power supply, signal integrity, and thermal management.
  • Follow proper PCB layout and shielding techniques, use EMI filters and shielding components, and ensure the device is properly decoupled and bypassed to minimize electromagnetic interference.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSD87353Q5D Overview

Use the download button to access the CSD87353Q5D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD87, or try a keyword search, such as Switching Regulator or Controllers
