CSD87501L - Texas Instruments

Description: CSD87501L 30-V Dual N-Channel Common Drain NexFET™ Power MOSFET

Download CSD87501L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

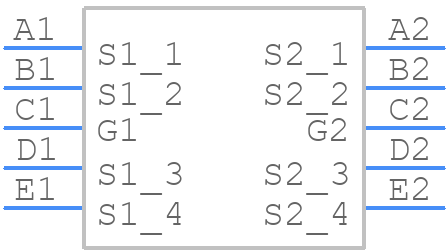

Symbol
CSD87501L - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CSD87501L - Texas Instruments PCB footprint - Other - Other - CSD87501L-2
click to zoom
3D Models
CSD87501L - Texas Instruments - 3D model - Other - CSD87501L-2
click to zoom

CSD87501L Details

  • Manufacturer Part Number:

    CSD87501L

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    14 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    198 pF

  • JESD-30 Code:

    R-PBGA-B10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    10

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.5 W

  • Pulsed Drain Current-Max (IDM):

    72 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BUTT

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

CSD87501L Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency signals away from the power planes and use a common mode choke to filter the power supply.
  • Use a thermal pad on the bottom of the package, and ensure good thermal conductivity to the PCB. Keep the thermal pad away from high-frequency signals and use thermal vias to dissipate heat.
  • A 10nF to 100nF input capacitance is recommended to filter the input voltage and reduce noise. The exact value depends on the specific application and noise requirements.
  • Ensure the input voltage is within the recommended range (1.8V to 5.5V). Use a voltage regulator or a low-dropout regulator to provide a stable input voltage. The device is biased internally, but an external bias resistor can be used for fine-tuning.
  • The CSD87501L can operate up to 100 MHz, but the maximum frequency depends on the specific application and the quality of the PCB layout. Ensure the layout is optimized for high-frequency signals and use a common mode choke to filter the power supply.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSD87501L Overview

Use the download button to access the CSD87501L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD87, or try a keyword search, such as Power Field-Effect Transistors
