CSD87501LT - Texas Instruments

Description: Texas Instruments CSD87501LT N-channel MOSFET Transistor, 14 A, 30 V, 10-Pin PICOSTAR

Download CSD87501LT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

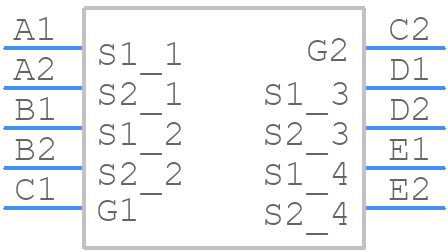

Symbol
CSD87501LT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CSD87501LT - Texas Instruments PCB footprint - BGA - BGA - YJG
click to zoom
3D Models
CSD87501LT - Texas Instruments - 3D model - BGA - YJG
click to zoom

CSD87501LT Details

  • Manufacturer Part Number:

    CSD87501LT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    14 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    198 pF

  • JESD-30 Code:

    R-PBGA-B10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    10

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.5 W

  • Pulsed Drain Current-Max (IDM):

    72 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BUTT

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

CSD87501LT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency signals away from the power plane and use a common mode choke to filter the power supply.
  • Monitor the junction temperature (TJ) and ensure it stays within the recommended range (-40°C to 150°C). Also, ensure the input voltage (VIN) is within the recommended range (1.8V to 5.5V) and the output current (IOUT) does not exceed the maximum rating (1A).
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor (CIN). This helps to filter the input voltage and reduce noise.
  • Choose an output capacitor (COUT) with a value between 10uF to 47uF, and an ESR of 10mΩ to 50mΩ. A low-ESR ceramic or tantalum capacitor is recommended to minimize voltage ripple and ensure stability.
  • The EN (enable) pin is used to enable or disable the device. Connect EN to VIN to enable the device, or connect it to GND to disable it. Use a pull-up resistor (1kΩ to 10kΩ) to ensure the EN pin is not left floating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSD87501LT Overview

Use the download button to access the CSD87501LT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD87, or try a keyword search, such as Power Field-Effect Transistors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
