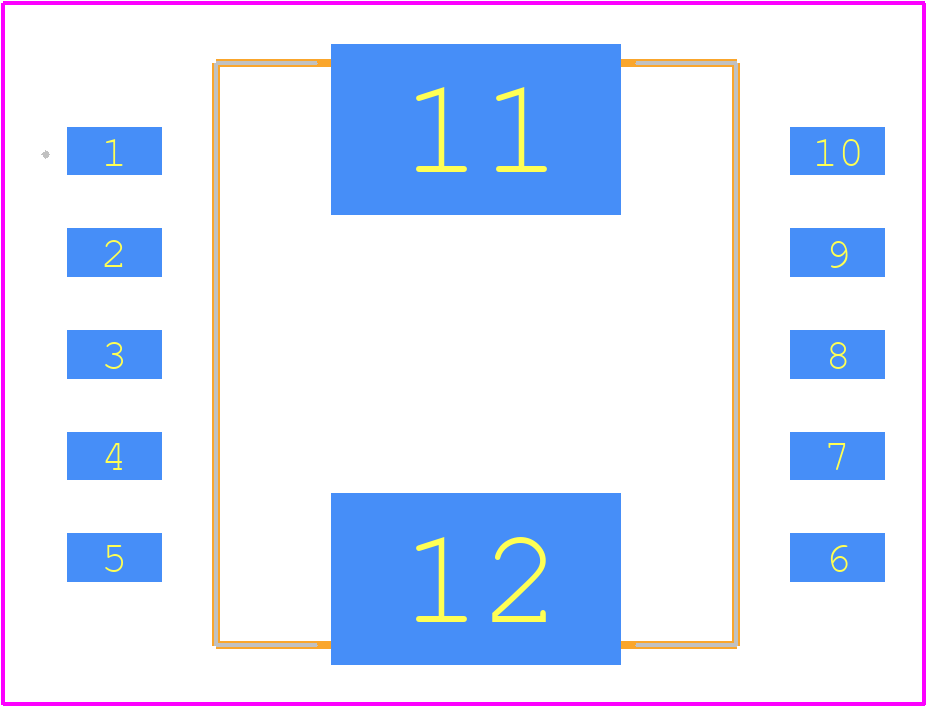

The recommended land pattern for the CST2010-200LD is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
The CST2010-200LD is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% for every degree above 80°C to ensure reliable operation.
Handle the CST2010-200LD by the body of the inductor, avoiding touching the leads or the core to prevent damage or contamination.
The self-resonant frequency of the CST2010-200LD is approximately 150 MHz, but this can vary depending on the specific application and PCB layout.
The CST2010-200LD is suitable for high-frequency applications up to 100 MHz, but it's recommended to consult with Coilcraft's application notes and simulation tools to ensure optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CST2010-200LD Overview

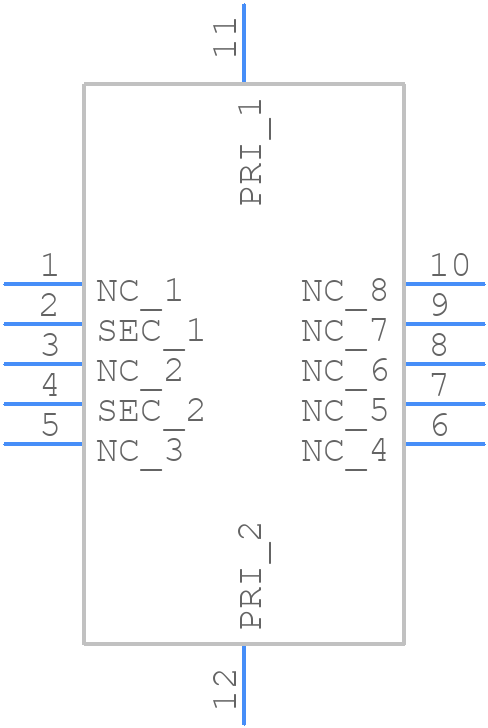

Use the download button to access the CST2010-200LD schematic symbol and PCB footprint.
