CSTNE15M0V53C000R0 - Murata Electronics

Description: Ceramic Resonator 15MHz ±0.5% (Tol) ±0.15% (Stability) 15pF 40Ohm Automotive AEC-Q200 3-Pin CSMD T/R

Download CSTNE15M0V53C000R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

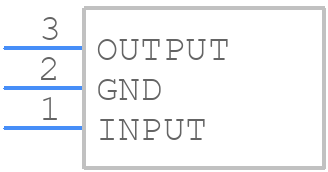

Symbol
CSTNE15M0V53C000R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
CSTNE15M0V53C000R0 - Murata Electronics PCB footprint - Other - Other - CSTNE15M0V53C000R0
click to zoom

CSTNE15M0V53C000R0 Details

  • Manufacturer Part Number:

    CSTNE15M0V53C000R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 3 PIN

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    AEC-Q200; TR, EMBOSSED, 7 INCH

  • Crystal/Resonator Type:

    CERAMIC RESONATOR

  • Frequency Stability:

    0.15%

  • Frequency Tolerance (MHz):

    5000

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    15 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    L3.2XB1.3XH0.9 (mm)/L0.126XB0.051XH0.035 (inch)

  • Surface Mount:

    YES

CSTNE15M0V53C000R0 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between the pad and the solder mask.
  • Store the components in a dry environment with a relative humidity of 60% or less, and follow the recommended moisture sensitivity level (MSL) handling procedures during assembly, such as baking the components before reflow soldering.
  • The maximum reflow temperature is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds.
  • Yes, the component is designed to withstand vibrations up to 10G, but it's recommended to perform additional testing and validation to ensure the component's performance in your specific application.
  • Check the component's soldering quality, ensure proper PCB layout and design, and verify the component's operating conditions, such as voltage and temperature, are within the recommended specifications.
