CSTNE16M0VH3C000R0 - Murata Electronics

Description: Ceramic Resonator 16 MHz 15pF SMD 40 Ohm

Download CSTNE16M0VH3C000R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

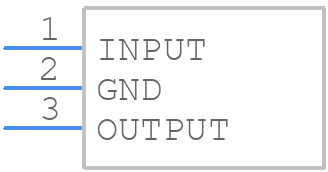

CSTNE16M0VH3C000R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
CSTNE16M0VH3C000R0 - Murata Electronics PCB footprint - Other - Other - CSTNE16M0VH3C000R0
click to zoom
3D Models
CSTNE16M0VH3C000R0 - Murata Electronics - 3D model - Other - CSTNE16M0VH3C000R0
click to zoom

CSTNE16M0VH3C000R0 Details

  • Manufacturer Part Number:

    CSTNE16M0VH3C000R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 3 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    AEC-Q200

  • Crystal/Resonator Type:

    CERAMIC RESONATOR

  • Frequency Stability:

    0.13%

  • Frequency Tolerance (MHz):

    7000

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    16 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Physical Dimension:

    3.2mm x 1.3mm x 0.9mm

  • Surface Mount:

    YES

CSTNE16M0VH3C000R0 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the CSTNE16M0VH3C000R0 is between 230°C to 250°C for a maximum of 3 seconds.
  • Yes, the CSTNE16M0VH3C000R0 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • The CSTNE16M0VH3C000R0 is rated for operation up to 125°C, but it's not recommended for use in extreme high-temperature environments. For high-temperature applications, consider using a capacitor with a higher temperature rating.
  • The maximum voltage derating for the CSTNE16M0VH3C000R0 is 80% of the rated voltage. For example, if the rated voltage is 16V, the maximum voltage derating would be 12.8V.
  • Yes, the CSTNE16M0VH3C000R0 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
