CSTNE9M83GH5L000R0 footprint, schematic symbol and 3D model by Murata Electronics

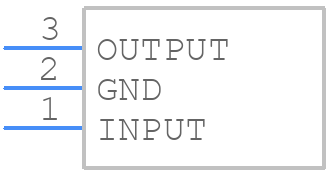

Symbol

click to zoom

PCB Footprints

CSTNE9M83GH5L000R0 - Murata Electronics PCB footprint - Other - Other - CSTNE9M83GH5L000R0

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CSTNE9M83GH5L000R0
Part Number CSTNE9M83GH5L000R0
Manufacturer Murata Electronics
Pin Count 3
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - CSTNE9M83GH5L000R0
Released Date Feb 9, 2024
Last Modified Date Mar 21, 2024 10:10 AM UTC
Pinout / Pin List Click Here (Member Only)

CSTNE9M83GH5L000R0 Details

Manufacturer Part Number:
CSTNE9M83GH5L000R0
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 3 PIN
ECCN Code:
EAR99
HTS Code:
8541.60.00.80
Factory Lead Time:
10 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Additional Feature:
TR, EMBOSSED, 7 INCH
Crystal/Resonator Type:
CERAMIC RESONATOR
Frequency Stability:
0.11%
Frequency Tolerance (MHz):
700
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
9.83 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
L3.2XB1.3XH0.7 (mm)/L0.126XB0.051XH0.028 (inch)
Surface Mount:
YES

CSTNE9M83GH5L000R0 Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, and a spacing of 0.5mm between pads. Refer to the Murata Land Pattern document for more details.
The CSTNE9M83GH5L000R0 is a moisture-sensitive device. Handle it in a dry environment, and follow the recommended storage and handling procedures outlined in the Murata Moisture Sensitivity Level document.
The maximum reflow temperature for the CSTNE9M83GH5L000R0 is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds.
The CSTNE9M83GH5L000R0 is designed to withstand vibrations up to 10G. However, it's recommended to perform additional testing and validation to ensure the component's reliability in your specific application.
To troubleshoot frequency stability issues, check the component's soldering, PCB layout, and nearby component interactions. Ensure that the CSTNE9M83GH5L000R0 is properly decoupled and that the PCB layout follows the recommended guidelines.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CSTNE9M83GH5L000R0 Overview

Use the download button to access the CSTNE9M83GH5L000R0 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CSTNE, or try a keyword search, such as Ceramic Resonators
