CSWA2-63DR+ - Mini-Circuits

Description: Absorptive RF Switch with internal driver. Single Supply Voltage, +3V to +5V

Download CSWA2-63DR+ Model

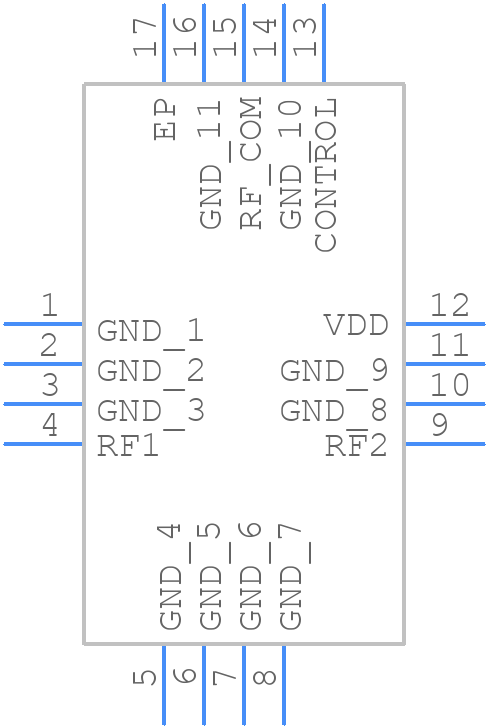

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CSWA2-63DR+ - Mini-Circuits PCB footprint - Other - Other - CSWA2-63DR+-2
click to zoom
3D Models
CSWA2-63DR+ - Mini-Circuits  - 3D model - Other - CSWA2-63DR+-2
click to zoom

CSWA2-63DR+ Details

  • Manufacturer Part Number:

    CSWA2-63DR+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    SPDT

  • VSWR-Max:

    1.22

CSWA2-63DR+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The CSWA2-63DR+ has a maximum junction temperature of 150°C. To handle the heat generated, it's recommended to use a heat sink or a thermal pad, and ensure good airflow around the device. Additionally, the PCB should be designed with thermal vias and a solid ground plane to dissipate heat efficiently.
  • The CSWA2-63DR+ has a maximum input power rating of 1W. Exceeding this rating can cause permanent damage to the device. It's essential to ensure that the input power is within the specified limits to maintain the device's reliability and performance.
  • The CSWA2-63DR+ has a nominal impedance of 50 ohms. To match the impedance, it's recommended to use a pi-network or a T-network matching circuit. The values of the matching components can be calculated using Smith chart analysis or simulation software like ADS or AWR.
  • The CSWA2-63DR+ has a typical current consumption of 40mA. This value can vary depending on the operating frequency, temperature, and input power. It's essential to ensure that the power supply can provide the required current to maintain the device's performance and reliability.
