CSX750FCC10.000M-UT - CITIZEN FINEDEVICE

Description: CITIZEN FINEDEVICE - CSX750FCC10.000M-UT - Oscillator, 10 MHz, 100 ppm, SMD, 7mm x 5mm, 5 V, CSX-750F SERIES

Download CSX750FCC10.000M-UT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

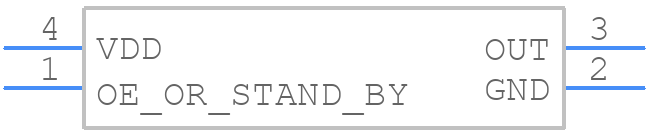

CSX750FCC10.000M-UT - CITIZEN FINEDEVICE - PCB symbol
click to zoom
PCB Footprints

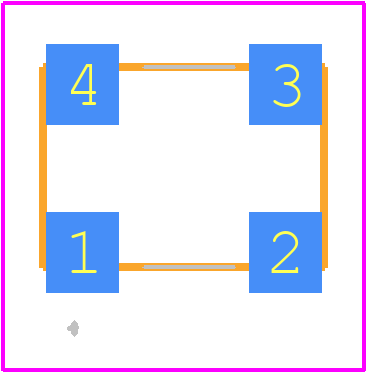

CSX750FCC10.000M-UT - CITIZEN FINEDEVICE PCB footprint - Other - Other - CSX750FCC10.000M-UT-1
click to zoom
3D Models
CSX750FCC10.000M-UT - CITIZEN FINEDEVICE - 3D model - Other - CSX750FCC10.000M-UT-1
click to zoom

CSX750FCC10.000M-UT Details

  • Manufacturer Part Number:

    CSX750FCC10.000M-UT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

  • Manufacturer:

    Citizen Finedevice Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; TAPE AND REEL

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    100%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Oscillator Type:

    CMOS/TTL

  • Output Load:

    10 TTL, 50 pF

  • Package Body Material:

    CERAMIC

  • Physical Dimension:

    7.0mm x 5.0mm x 1.6mm

  • Rise Time-Max:

    8 ns

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    60/40 %

CSX750FCC10.000M-UT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CSX750FCC10.000M-UT is -40°C to +85°C, as specified in the datasheet.
  • To ensure the oscillator starts up correctly after power-on, make sure to follow the power-up sequence recommended in the datasheet, and ensure that the power supply voltage is stable and within the recommended range.
  • The maximum frequency deviation allowed for the CSX750FCC10.000M-UT is ±20 ppm over the operating temperature range, as specified in the datasheet.
  • While the CSX750FCC10.000M-UT is designed to be robust, it's recommended to consult with the manufacturer or a qualified engineer to ensure the oscillator can withstand the specific vibration environment in which it will be used.
  • The recommended storage temperature range for the CSX750FCC10.000M-UT is -40°C to +125°C, as specified in the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSX750FCC10.000M-UT Overview

Use the download button to access the CSX750FCC10.000M-UT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSX75, or try a keyword search, such as XO
