A good PCB layout for the CT415-HSN830MR should ensure that the Hall sensor is placed close to the magnetic field, with minimal copper traces and vias between the sensor and the magnetic field. Additionally, a ground plane under the sensor can help reduce noise and improve accuracy.
Calibration involves adjusting the sensor's sensitivity and offset to match the specific magnetic field and application requirements. This can be done by applying a known magnetic field and measuring the output, then adjusting the sensor's internal registers or external components to achieve the desired output.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the sensor's accuracy and sensitivity may degrade at extreme temperatures. It's recommended to consult with Allegro MicroSystems LLC or perform thorough testing to ensure the sensor meets the specific application requirements.
Yes, the CT415-HSN830MR is designed to operate in high-vibration environments, but it's crucial to ensure the sensor is properly mounted and secured to prevent mechanical stress and damage. Additionally, the PCB layout and design should be optimized to minimize the effects of vibration on the sensor's performance.
To minimize EMI, use proper shielding, grounding, and layout techniques. Ensure the sensor is placed away from high-frequency sources, and use twisted pair or shielded cables for connections. Additionally, consider using EMI filters or common-mode chokes to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CT415-HSN830MR Overview

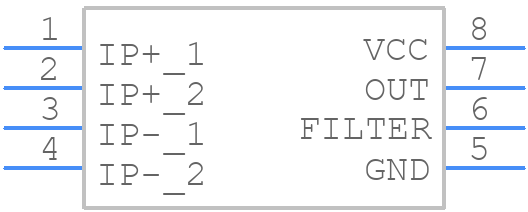

Use the download button to access the CT415-HSN830MR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CT415,
or try a keyword search, such as Other Sensors/Transducers
