CT426-HSN830MR - Allegro Microsystems

Description: Current Sensor 30A 1 Channel Magnetoresistive Bidirectional 8-SOIC (0.154", 3.90mm Width)

Download CT426-HSN830MR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

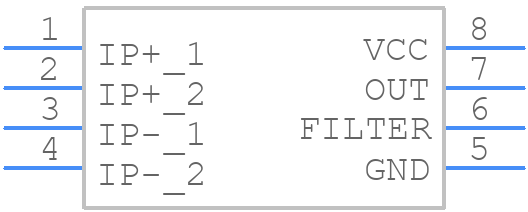

CT426-HSN830MR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
CT426-HSN830MR - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8_2024-1
click to zoom
3D Models
CT426-HSN830MR - Allegro Microsystems - 3D model - Small Outline Packages - SOIC-8_2024-1
click to zoom

CT426-HSN830MR Details

  • Manufacturer Part Number:

    CT426-HSN830MR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.89 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.65-2.65V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

CT426-HSN830MR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CT426-HSN830MR should ensure that the Hall sensor is placed close to the magnetic field, and the PCB traces should be kept short and away from noise sources. A ground plane under the device can help reduce noise and improve performance.
  • The output signal of the CT426-HSN830MR can be noisy due to the Hall effect principle. To filter out the noise, a low-pass filter with a cutoff frequency of around 1 kHz can be used. Additionally, shielding the device and using a ground plane can help reduce electromagnetic interference (EMI).
  • The CT426-HSN830MR is rated for operation from -40°C to 150°C. However, the device's accuracy and sensitivity may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
  • Calibration of the CT426-HSN830MR involves adjusting the output signal to match the actual current being measured. This can be done by applying a known current to the device and adjusting the output signal to match the expected value. The device's datasheet provides a calibration procedure that should be followed.
  • The CT426-HSN830MR's output stage is capable of driving a maximum current of 20 mA. Exceeding this current limit can damage the device. It's recommended to use a buffer or amplifier if the output current requirement exceeds 20 mA.
