CT431-HSWF65MR - Allegro Microsystems

Description: Integrated contact current sensing for low to medium current ranges: 0 to 20 A +30 A +50 A +20 A +40 A 0 to 65 A 0 to 30 A 0 to 50 A ±65 A Integrated current carrying conductor (CCC) Linear analog output voltage Total error output ≤ ±1.0% FS, -40°C to 125°C 1 MHz bandwidth Response time: ~300 ns UL/IEC 62368-1 and UL1577 certification Rated isolation voltage: 5 kVRMS Working voltage for basic isolation: 1287 VRMS Working voltage for reinforced isolation: 647 VRMS IEC 61000-4-5 certified

Download CT431-HSWF65MR Model

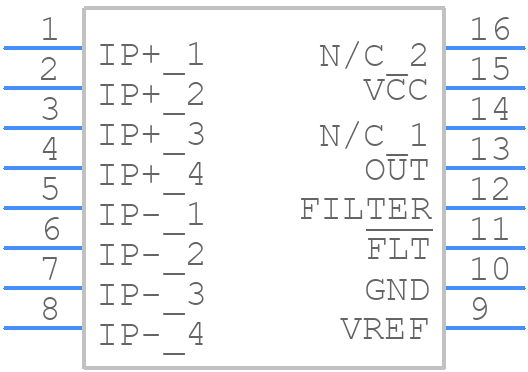

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CT431-HSWF65MR - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - CT431
click to zoom
3D Models
CT431-HSWF65MR - Allegro Microsystems  - 3D model - Small Outline Packages - CT431
click to zoom

CT431-HSWF65MR Details

  • Manufacturer Part Number:

    CT431-HSWF65MR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0-3.6V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

CT431-HSWF65MR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CT431-HSWF65MR should ensure that the Hall sensor is centered over the IC, with the Hall sensor's sensitive axis aligned with the direction of the magnetic field. Keep the PCB traces as short as possible, and use a ground plane to reduce noise and EMI.
  • The CT431-HSWF65MR's output signal can be noisy due to the Hall effect principle. To filter out noise, use a low-pass filter with a cutoff frequency around 1 kHz to 10 kHz, depending on the application's requirements. You can also use hysteresis or Schmitt trigger circuits to improve signal quality.
  • The CT431-HSWF65MR is rated for operation from -40°C to 150°C, but the device's accuracy and sensitivity may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • Calibration involves adjusting the device's sensitivity and offset to match the specific application's requirements. Use a calibration procedure that involves applying a known magnetic field and adjusting the device's output to match the expected response. Consult Allegro's application notes for more information.
  • The CT431-HSWF65MR has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use anti-static wrist straps, mats, and packaging materials, and avoid touching the device's pins or exposed internal components.
