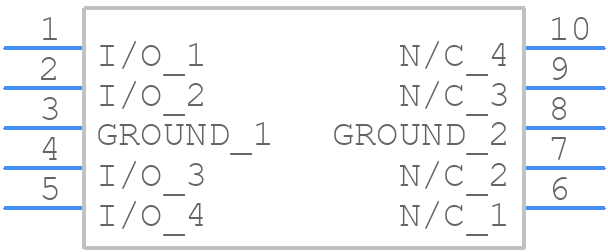

CTLTVS5-4 - Central Semiconductor

CTLTVS5-4 Details

• Manufacturer Part Number:

  CTLTVS5-4

• Part Life Cycle Code:

  Transferred

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  Central Semiconductor Corp

• YTEOL:

  5.98

• Additional Feature:

  ULTRA LOW CAPACITANCE

• Breakdown Voltage-Max:

  9 V

• Breakdown Voltage-Min:

  6 V

• Breakdown Voltage-Nom:

  7.5 V

• Clamping Voltage-Max:

  13 V

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  R-PDSO-N10

• Non-rep Peak Rev Power Dis-Max:

  32.5 W

• Number of Elements:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity:

  UNIDIRECTIONAL

• Reference Standard:

  IEC-61000-4-2, 4-4

• Rep Pk Reverse Voltage-Max:

  5 V

• Reverse Current-Max:

  1 µA

• Reverse Test Voltage:

  5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL
