CVS-03TB - Nidec Copal

Description: DIP Switches / SIP Switches 3-position SMD Slide switch (1mm pitch), Gull-wing

Download CVS-03TB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

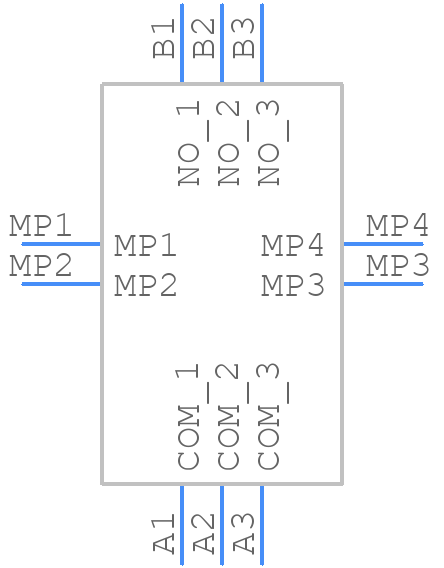

CVS-03TB - Nidec Copal - PCB symbol
click to zoom
PCB Footprints

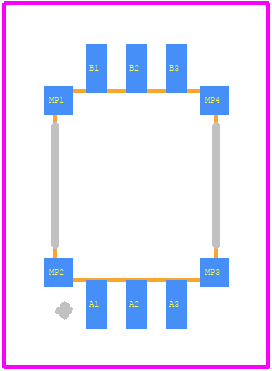

CVS-03TB - Nidec Copal PCB footprint - Other - Other - CVS-03TB-1
click to zoom
3D Models
CVS-03TB - Nidec Copal - 3D model - Other - CVS-03TB-1
click to zoom

CVS-03TB Details

  • Manufacturer Part Number:

    CVS-03TB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    6

  • Actuator Material:

    POLYAMIDE

  • Additional Feature:

    APPROVAL: UL

  • Body Breadth:

    4 mm

  • Body Height:

    1.45 mm

  • Body Length or Diameter:

    4.7 mm

  • Center Contact Material:

    STAINLESS STEEL

  • Center Contact Plating:

    GOLD

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@6VDC

  • Contact Resistance:

    0.2 mΩ

  • Contact Voltage(DC)-Max:

    6 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    1000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD

  • Housing Material:

    STAINLESS STEEL

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switch Sections:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 10 INCH

  • Solderability:

    REFLOW; WAVE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

CVS-03TB Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the CVS-03TB near a thermal pad or a heat sink, and ensuring good airflow around the component. A minimum of 1mm clearance around the component is recommended.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during soldering, and ensure the component is properly aligned with the PCB pads.
  • The maximum operating temperature range for the CVS-03TB is -40°C to 125°C. However, it's recommended to operate the component within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the CVS-03TB is designed to withstand vibrations up to 10G. However, it's recommended to ensure the component is properly secured to the PCB and the PCB is securely fastened to the system to prevent damage or dislodging.
  • The recommended storage condition for the CVS-03TB is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the component in direct sunlight or near sources of moisture.
