CX90B2-24P - Hirose

Description: USB Connector, USB Type C, USB 3.2, Receptacle, 24 Ways, Surface Mount, Right Angle

Download CX90B2-24P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

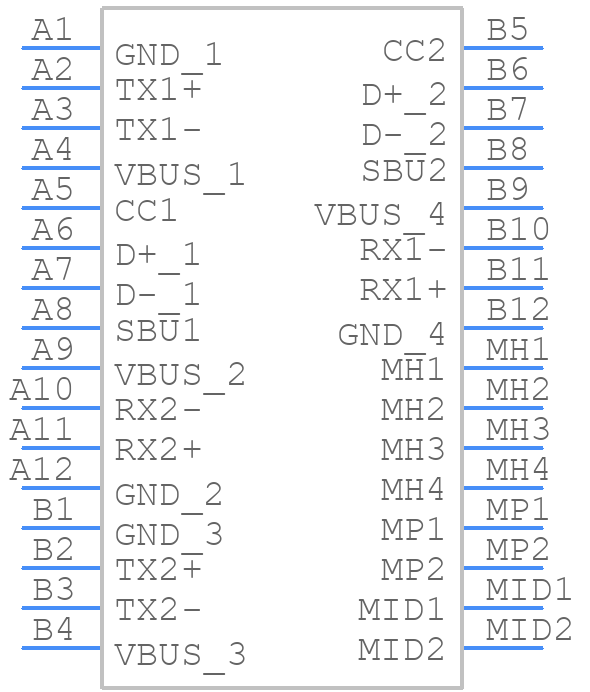

CX90B2-24P - Hirose - PCB symbol
click to zoom
PCB Footprints
CX90B2-24P - Hirose PCB footprint - Other - Other - CX90B2-24P-2
click to zoom

CX90B2-24P Details

  • Manufacturer Part Number:

    CX90B2-24P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    USB CONNECTOR

CX90B2-24P Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the CX90B2-24P connector is 0.5 N·m to 1.5 N·m.
  • Yes, the CX90B2-24P connector is designed to withstand high-vibration environments and is suitable for use in applications such as industrial machinery, automotive systems, and aerospace systems.
  • The CX90B2-24P connector is rated for operating temperatures ranging from -40°C to 125°C, making it suitable for use in high-temperature applications.
  • The CX90B2-24P connector has a mating cycle life of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the CX90B2-24P connector is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
