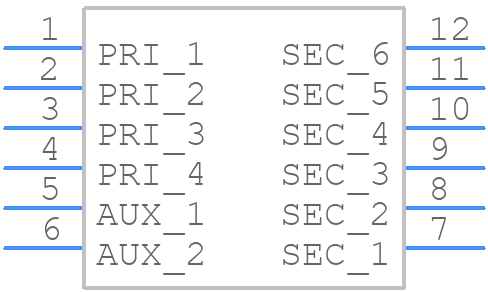

Symbol

click to zoom

PCB Footprints

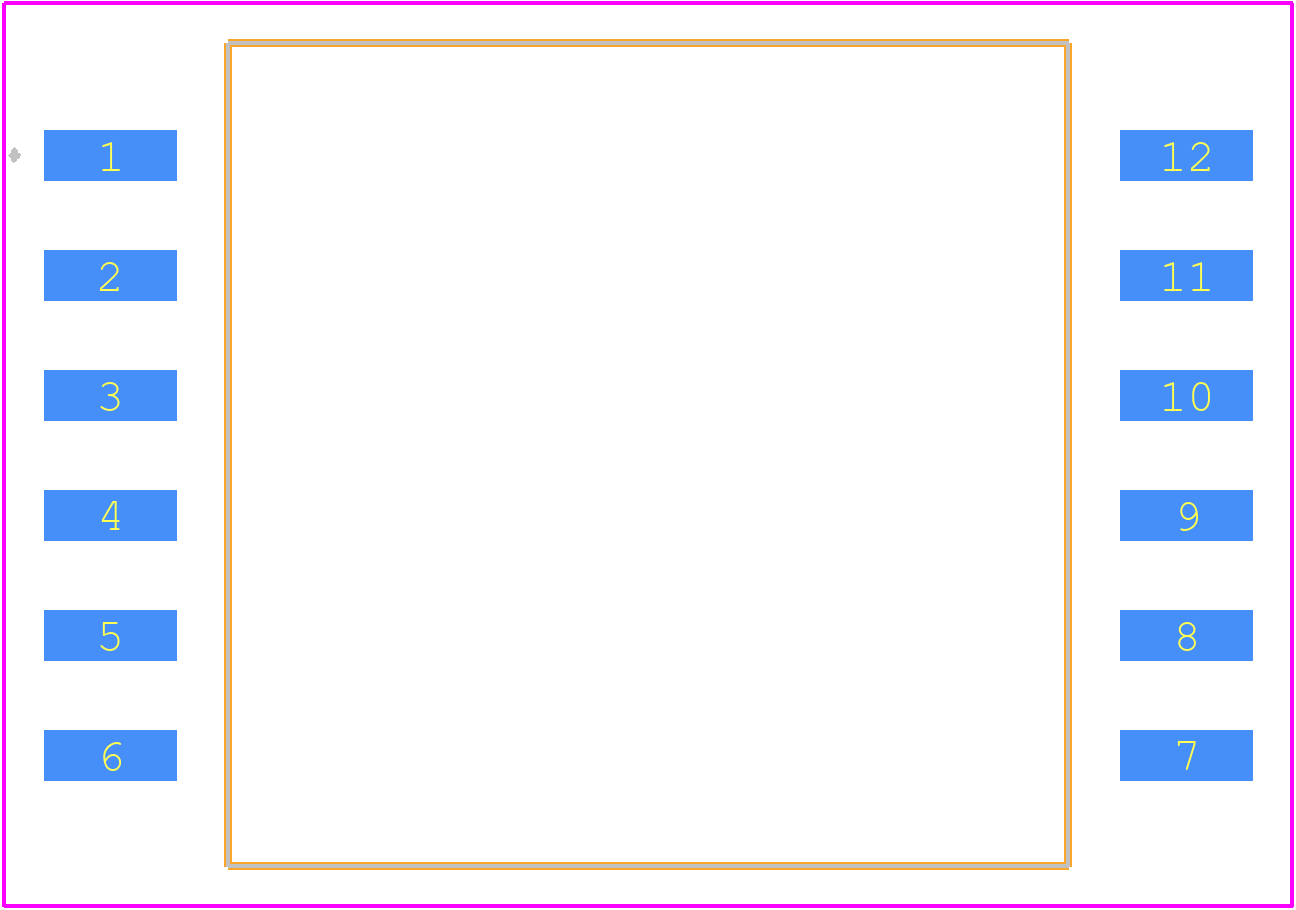

CX9642-ALD - COILCRAFT PCB footprint - Other - Other - CX9642-ALD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CX9642-ALD
Part Number CX9642-ALD
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - CX9642-ALD-2
Released Date Dec 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CX9642-ALD Details

Manufacturer Part Number:
CX9642-ALD
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
7.42
Additional Feature:
LENGTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO
Height:
11.43 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
Length:
21 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
3
Operating Frequency-Max:
500 kHz
Operating Frequency-Min:
100 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Primary Inductance:
70 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
20.57 mm
