CXA-M10A-L Frequently Asked Questions (FAQs)

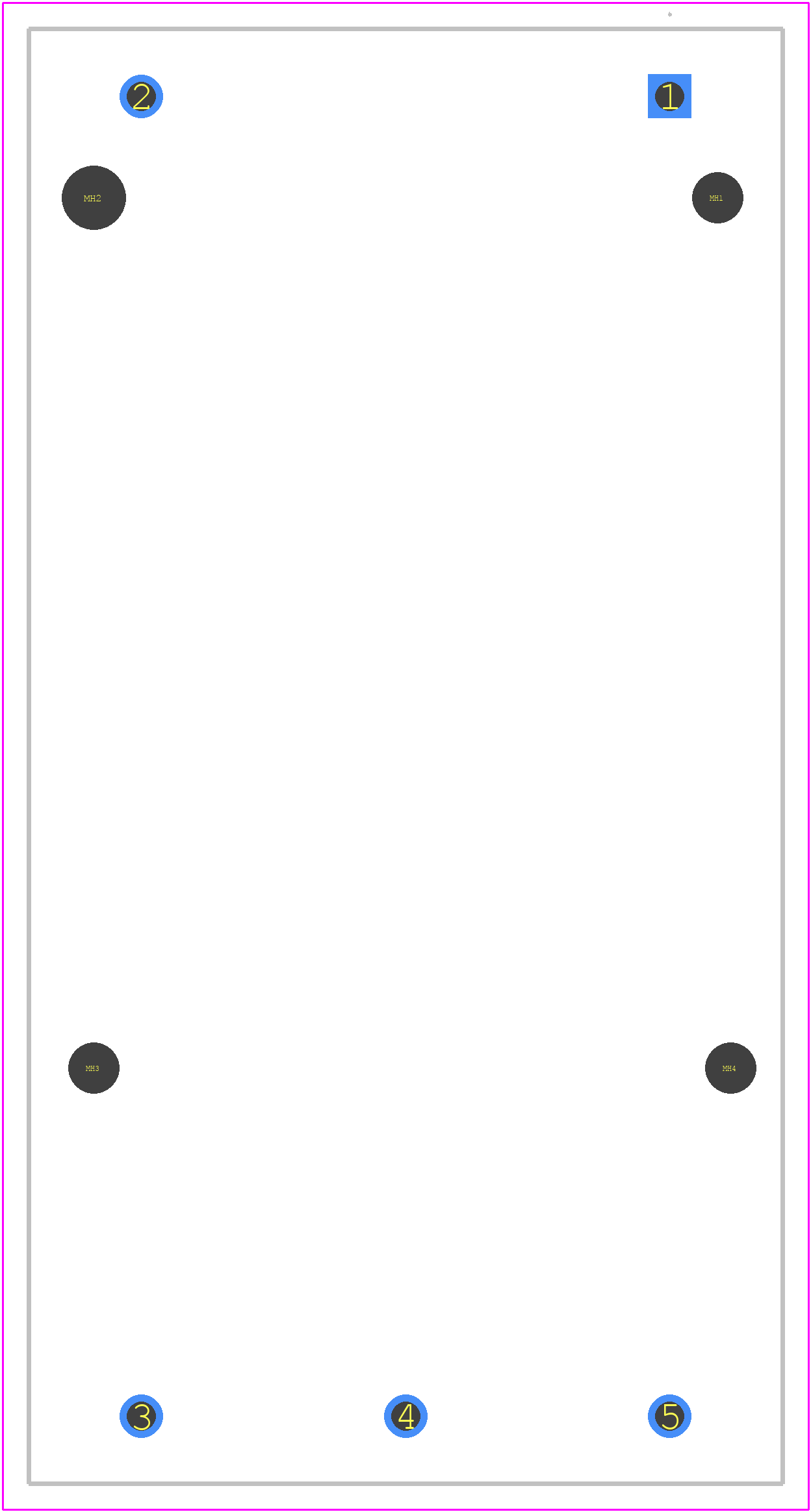

• What is the recommended PCB layout for optimal performance of CXA-M10A-L?
  TDK recommends a symmetrical PCB layout with a solid ground plane and a minimum of 10 mils (0.25 mm) clearance around the component to minimize electromagnetic interference (EMI) and ensure optimal performance.
• How do I handle the thermal management of CXA-M10A-L?
  The CXA-M10A-L has a thermal resistance of 20°C/W. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the component.
• What is the recommended soldering profile for CXA-M10A-L?
  TDK recommends a soldering profile with a peak temperature of 240°C, a dwell time of 3-5 seconds, and a cooling rate of 4°C/s to minimize thermal stress and ensure reliable solder joints.
• Can I use CXA-M10A-L in a high-vibration environment?
  Yes, the CXA-M10A-L is designed to withstand vibrations up to 10 G (rms) in the frequency range of 10-2000 Hz. However, it's essential to ensure proper mounting and secure the component to prevent mechanical stress.
• How do I troubleshoot issues with CXA-M10A-L?
  To troubleshoot issues, check the component's soldering, PCB layout, and power supply connections. Verify that the component is operated within its specified ratings and that the application meets the recommended operating conditions.
