CXA1390AQ - Sony

CXA1390AQ Details

• Manufacturer Part Number:

  CXA1390AQ

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

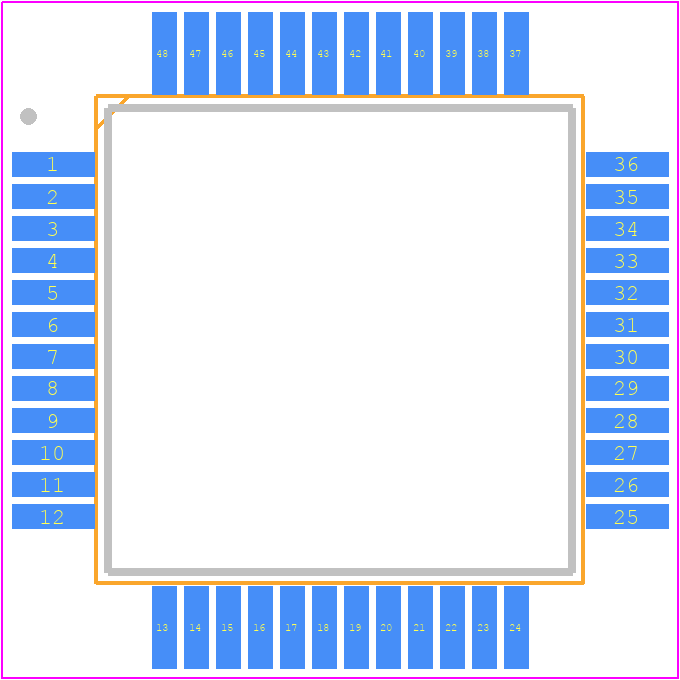

• Package Description:

  12 X 12 MM, PLASTIC, QFP-48

• Pin Count:

  48

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Sony Semiconductor

• YTEOL:

  0

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e0

• Length:

  12 mm

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP48,.6SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.55 mm

• Supply Current-Max:

  65 mA

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  12 mm
