A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 0.1uF decoupling capacitor between VCC and GND near the device.
Use a voltage supervisor or a power-on reset circuit to ensure that the device is fully powered up before accessing the memory. Also, use a capacitor to filter out power noise and ensure a clean power-up sequence.
The maximum operating frequency for the CY14B101LA-SZ45XI is 108 MHz. However, the actual frequency may vary depending on the system design and operating conditions.
Yes, but ensure that the voltage domains are properly isolated and that the device is powered from a single voltage source. Use level shifters or voltage translators if necessary to ensure signal integrity.
Implement error detection and correction mechanisms, such as ECC or checksums, to detect and correct errors during write operations. Also, use a write-verify mechanism to ensure data integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY14B101LA-SZ45XI Overview

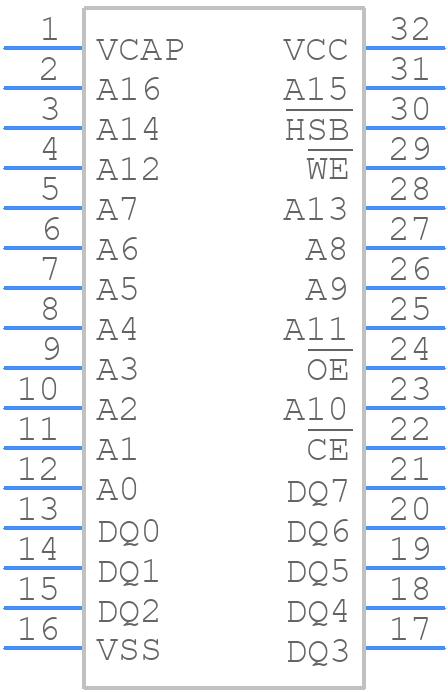

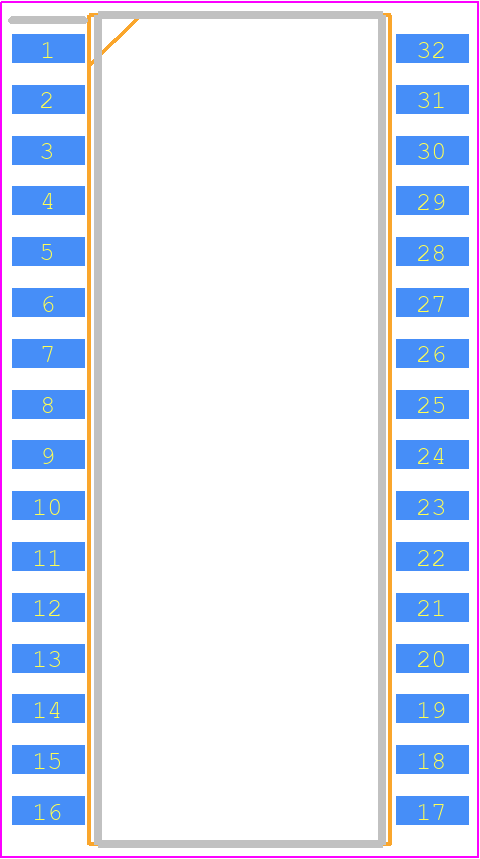

Use the download button to access the CY14B101LA-SZ45XI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY14B,
or try a keyword search, such as SRAMs
