Infineon provides a recommended PCB layout in their application note AN20060, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The CY14B116N-ZSP25XI requires a specific power-up and power-down sequence to ensure proper operation. Infineon recommends following the sequence outlined in the datasheet, which includes powering up VCC before VPP and powering down VPP before VCC.
The CY14B116N-ZSP25XI has a maximum junction temperature of 150°C. To ensure reliable operation, Infineon recommends using a thermal pad on the PCB, keeping the device away from heat sources, and using a heat sink if necessary.
The CY14B116N-ZSP25XI has a hardware write protection feature that can be enabled using the WP pin. Infineon recommends connecting the WP pin to VCC or VSS to enable or disable write protection, respectively. Additionally, software-based write protection mechanisms can be implemented using the device's security features.
Infineon provides specific guidelines for using the CY14B116N-ZSP25XI in high-reliability or automotive applications, including recommendations for temperature range, voltage supply, and radiation tolerance. Engineers should consult Infineon's application notes and reliability reports for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY14B116N-ZSP25XI Overview

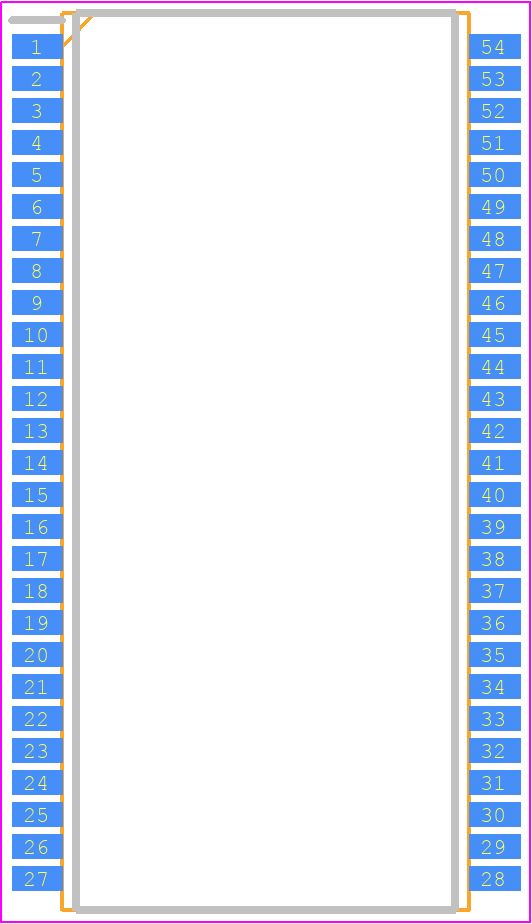

Use the download button to access the CY14B116N-ZSP25XI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY14B,
or try a keyword search, such as SRAMs
