Infineon recommends following the PCB layout guidelines provided in the application note AN20060, which includes recommendations for signal routing, power supply decoupling, and thermal management.
To ensure data integrity, it's essential to follow the power-up and power-down sequencing guidelines provided in the datasheet. Additionally, consider implementing a power-on reset (POR) circuit to ensure the device is properly initialized during power-up.
The CY14B512Q2A-SXI is rated for operation from -40°C to +85°C. However, it's essential to consider the device's thermal characteristics and ensure proper thermal management to maintain reliability and performance.
The CY14B512Q2A-SXI is not specifically designed for radiation-intensive environments. If your application requires radiation tolerance, consider using a device specifically designed for such environments, such as those with radiation-hardened or radiation-tolerant designs.
The device provides error detection and correction mechanisms, such as ECC and CRC. Implement error handling mechanisms in your firmware to detect and correct errors during write operations. Refer to the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY14B512Q2A-SXI Overview

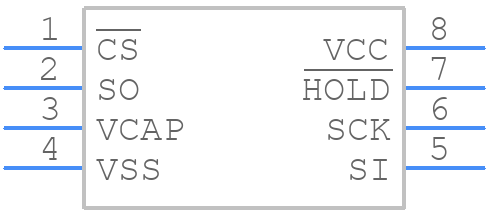

Use the download button to access the CY14B512Q2A-SXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY14B,
or try a keyword search, such as SRAMs
