The recommended PCB layout for optimal performance involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
The CY14V101LA-BA45XIT requires a specific power-up and power-down sequencing to ensure proper operation. The VCC pin should be powered up before the VIO pin, and the VIO pin should be powered down before the VCC pin. A power-up sequence of VCC -> VIO and a power-down sequence of VIO -> VCC is recommended.
The CY14V101LA-BA45XIT has an operating temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
To ensure data integrity during power failures, it's recommended to use a capacitor on the VCC pin to provide a temporary power source during power failures. Additionally, the device has a built-in power-fail detection circuit that can be used to detect power failures and prevent data corruption.
The CY14V101LA-BA45XIT has a maximum clock frequency of 108 MHz. However, the recommended clock frequency is 100 MHz or lower to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY14V101LA-BA45XIT Overview

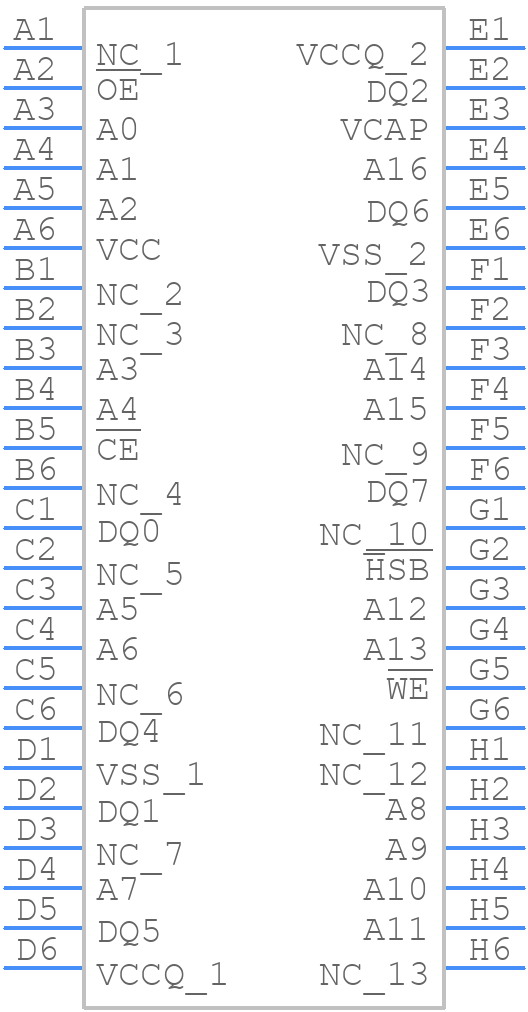

Use the download button to access the CY14V101LA-BA45XIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY14V,
or try a keyword search, such as SRAMs
