CY15B102QN-50SXI - Infineon

Description: FRAM (Ferroelectric RAM) Memory IC 4Mb (512K x 8) SPI 50MHz 8-SOIC

Download CY15B102QN-50SXI Model

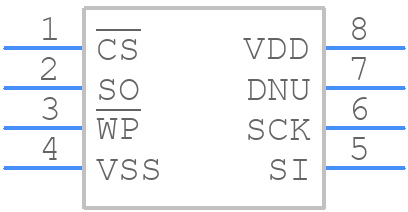

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

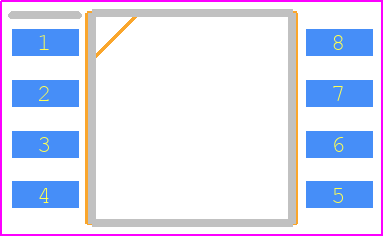

CY15B102QN-50SXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (208 Mils) 001-85261
click to zoom
3D Models
CY15B102QN-50SXI - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC (208 Mils) 001-85261
click to zoom

CY15B102QN-50SXI Details

  • Manufacturer Part Number:

    CY15B102QN-50SXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    DATA RETENTION TIME @ 85 DEGREE CENTIGRADE; 2KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    50 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    1000000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Seated Height-Max:

    2.03 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00007 A

  • Standby Voltage-Min:

    1.8 V

  • Supply Current-Max:

    0.0037 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B102QN-50SXI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY15B102QN-50SXI is 2.7V to 3.6V.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent unwanted writes or data corruption. A slow power ramp-up and ramp-down is recommended, with a minimum rise and fall time of 1 ms.
  • The maximum clock frequency supported by CY15B102QN-50SXI is 50 MHz.
  • To ensure data integrity during power failures or brownouts, it is recommended to use a voltage supervisor or a power-on reset circuit to detect power failures and prevent writes to the device during these events.
  • The typical standby current consumption of CY15B102QN-50SXI is around 1 μA.
