CY15B104Q-LHXI - Infineon

Description: F-RAM F-RAM Memory Serial

Download CY15B104Q-LHXI Model

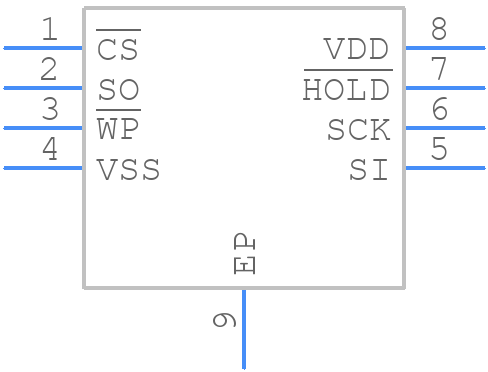

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY15B104Q-LHXI - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin DFN 001-85579
click to zoom
3D Models
CY15B104Q-LHXI - Infineon  - 3D model - Small Outline No-lead - 8-pin DFN 001-85579
click to zoom

CY15B104Q-LHXI Details

  • Manufacturer Part Number:

    CY15B104Q-LHXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00025 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B104Q-LHXI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CY15B104Q-LHXI is 2.7V to 3.6V.
  • The power-up and power-down sequences for the CY15B104Q-LHXI should be handled according to the datasheet recommendations to prevent damage to the device. A slow power-up and power-down sequence is recommended to prevent voltage spikes and ensure proper device operation.
  • The maximum clock frequency supported by the CY15B104Q-LHXI is 104 MHz.
  • A reset circuit for the CY15B104Q-LHXI can be implemented using a resistor-capacitor (RC) network or a dedicated reset IC. The reset circuit should be designed to provide a clean reset signal to the device during power-up and power-down sequences.
  • The CY15B104Q-LHXI has a maximum junction temperature of 150°C. Proper thermal management is crucial to prevent overheating and ensure reliable device operation. A heat sink or thermal pad may be required depending on the application and operating conditions.
