CY15B104QI-20LPXC - Infineon

Description: CYPRESS SEMICONDUCTOR - CY15B104QI-20LPXC - FRAM, 4MBIT, 0 TO 70DEG C Excelon™ LP 4-Mbit (512K × 8) Serial (SPI) F-RAM

Download CY15B104QI-20LPXC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY15B104QI-20LPXC model

Email notifications will be applied after download.

Send part feedback

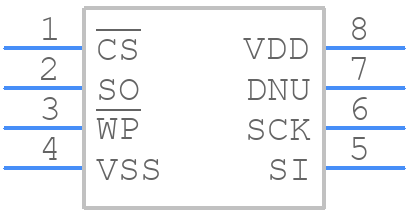

Symbol

CY15B104QI-20LPXC - Infineon - PCB symbol

PCB Footprints

CY15B104QI-20LPXC - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)

3D Models

CY15B104QI-20LPXC - Infineon - 3D model - Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY15B104QI-20LPXC
Part Number CY15B104QI-20LPXC
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)
Released Date Apr 28, 2020
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

CY15B104QI-20LPXC Details

Manufacturer Part Number:
CY15B104QI-20LPXC
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

CY15B104QI-20LPXC Overview

Use the download button to access the CY15B104QI-20LPXC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY15B, or try a keyword search, such as FRAMs
