CY15B108QN-40LPXI - Infineon

Description: Cypress Semiconductor, CY15B108QN-40LPXI

Download CY15B108QN-40LPXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

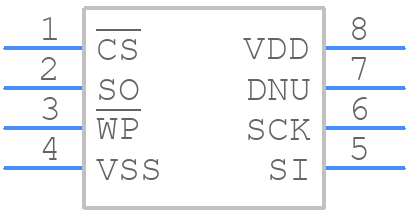

PCB Footprints
CY15B108QN-40LPXI - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)
click to zoom
3D Models
CY15B108QN-40LPXI - Infineon  - 3D model - Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)
click to zoom

CY15B108QN-40LPXI Details

  • Manufacturer Part Number:

    CY15B108QN-40LPXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    1000000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3.28 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00012 A

  • Standby Voltage-Min:

    1.8 V

  • Supply Current-Max:

    0.0032 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B108QN-40LPXI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CY15B108QN-40LPXI is 2.7V to 3.6V.
  • The power-up and power-down sequences for the CY15B108QN-40LPXI should be handled according to the datasheet recommendations to prevent damage to the device.
  • The maximum clock frequency supported by the CY15B108QN-40LPXI is 40 MHz.
  • To implement a reliable write operation for the CY15B108QN-40LPXI, ensure that the write cycle is completed within the specified time, and the write enable (WE) signal is asserted correctly.
  • The WP (Write Protect) pin on the CY15B108QN-40LPXI is used to prevent accidental writes to the device. When WP is low, the device is in write-protect mode, and no writes are allowed.
