For optimal performance, it's recommended to follow Infineon's guidelines for PCB layout and thermal management. This includes using a 4-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and ensuring good thermal conductivity to dissipate heat.
To ensure reliable data retention and prevent data corruption, it's essential to follow the recommended programming and erase procedures, use the correct voltage levels, and implement error detection and correction mechanisms in your design.
The asynchronous mode allows for faster access times, while the synchronous mode provides better noise immunity. System designers should consider the trade-offs between access time, power consumption, and noise immunity when choosing the operating mode.
It's crucial to follow the recommended power-up and power-down sequences to prevent damage or malfunction. This includes ensuring a stable power supply, controlling the voltage ramp-up and ramp-down rates, and implementing power-on reset circuits.
When using the device in harsh environments, consider the device's operating temperature range, radiation tolerance, and potential for single-event effects. Implementing error detection and correction mechanisms, as well as using radiation-hardened components, can help mitigate these effects.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY15B108QN-40SXI Overview

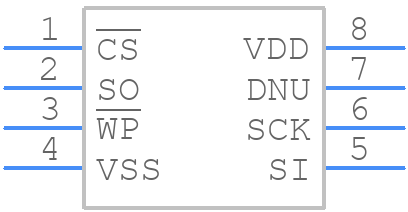

Use the download button to access the CY15B108QN-40SXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY15B,
or try a keyword search, such as FRAMs
