Part Image

CY15B116QI-20BKXC - Infineon

Description: FRAM (Ferroelectric RAM) Memory IC 16Mbit SPI 20 MHz 20 ns 24-FBGA (6x8)

Download CY15B116QI-20BKXC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY15B116QI-20BKXC model

Email notifications will be applied after download.

Send part feedback

Symbol

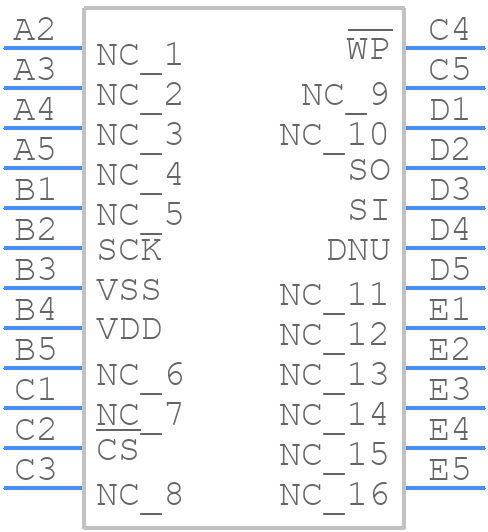

CY15B116QI-20BKXC - Infineon - PCB symbol

PCB Footprints

CY15B116QI-20BKXC - Infineon PCB footprint - BGA - BGA - 24L FBGA 8 × 6 × 1.2 mm BK24A

3D Models

CY15B116QI-20BKXC - Infineon - 3D model - BGA - 24L FBGA 8 × 6 × 1.2 mm BK24A

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY15B116QI-20BKXC
Part Number CY15B116QI-20BKXC
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24L FBGA 8 × 6 × 1.2 mm BK24A
Released Date May 4, 2023
Last Modified Date May 4, 2023 5:38 PM UTC
Pinout / Pin List Click Here (Member Only)

CY15B116QI-20BKXC Details

Manufacturer Part Number:
CY15B116QI-20BKXC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Infineon Technologies AG
YTEOL:
8
Memory IC Type:
FRAM

Trust Checks

Community Provided

System Verified

Community Approved

CY15B116QI-20BKXC Overview

Use the download button to access the CY15B116QI-20BKXC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY15B, or try a keyword search, such as FRAMs
