CY15B201QN-50SXE - Infineon

Description: 8Mb EXCELON™ LP Ferroelectric RAM (F-RAM) Serial (SPI), 1024K × 8, 40 MHz, industrial

Download CY15B201QN-50SXE Model
Schematic

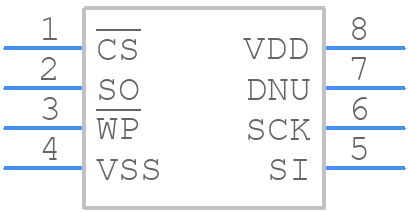

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY15B201QN-50SXE - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (208 Mils) Package Outline, 001-85261
click to zoom
3D Models
CY15B201QN-50SXE - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC (208 Mils) Package Outline, 001-85261
click to zoom

CY15B201QN-50SXE Details

  • Manufacturer Part Number:

    CY15B201QN-50SXE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Memory IC Type:

    FRAM

  • Moisture Sensitivity Level:

    3

CY15B201QN-50SXE Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY15B201QN-50SXE is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.3V to 3.9V, but with reduced performance and reliability.
  • To ensure proper operation, it's recommended to follow a controlled power-up and power-down sequence. Power-up should be done slowly (less than 10 ms) to prevent latch-up, and power-down should be done in the reverse order of power-up. Additionally, ensure that the VCC pin reaches its minimum specified voltage before applying any input signals.
  • The maximum clock frequency supported by CY15B201QN-50SXE is 50 MHz, as specified in the datasheet. However, it's essential to consider the system's noise margin, signal integrity, and clock skew when operating at higher frequencies.
  • A reliable reset mechanism can be implemented using an external reset signal connected to the RESET pin. Ensure that the reset signal is active low, and its duration is at least 10 ns. Additionally, consider using a reset supervisor IC or a voltage monitor IC to generate a reset signal when the power supply voltage falls below a certain threshold.
  • CY15B201QN-50SXE has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to maintain a safe operating temperature by providing adequate heat dissipation mechanisms, such as heat sinks, thermal vias, or thermal interfaces. Additionally, consider the thermal resistance of the package and the PCB when designing the thermal management system.
