CY15E016J-SXE - Infineon

Description: F-RAM F-RAM Memory Serial

Download CY15E016J-SXE Model

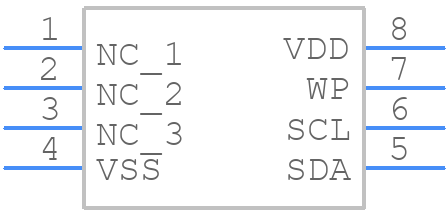

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY15E016J-SXE - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (150 Mils) Package Outline, 51-85066...
click to zoom
3D Models
CY15E016J-SXE - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC (150 Mils) Package Outline, 51-85066...
click to zoom

CY15E016J-SXE Details

  • Manufacturer Part Number:

    CY15E016J-SXE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    DATA RETENTION TIME @ 105 DEGREE CENTIGRADE;2KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    11

  • Endurance:

    10000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.727 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.00004 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.00045 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.8985 mm

  • Write Protection:

    HARDWARE

CY15E016J-SXE Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY15E016J-SXE is 2.7V to 3.6V.
  • During power-up and power-down, the HOLD and OE pins should be tied to VCC or left floating to prevent unwanted data changes.
  • The maximum clock frequency supported by CY15E016J-SXE is 104 MHz.
  • To ensure data integrity, use a voltage supervisor or a power-on reset circuit to ensure that the device is properly initialized before accessing the memory.
  • No, CY15E016J-SXE is not designed to operate at 5V. It's recommended to use a level translator or voltage regulator to ensure the device operates within its recommended voltage range.
