CY15V108QI-20LPXI - Infineon

Description: FRAM 8Mbit Serial-SPI Interface 1.8V 8-Pin GQFN Standard

Download CY15V108QI-20LPXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

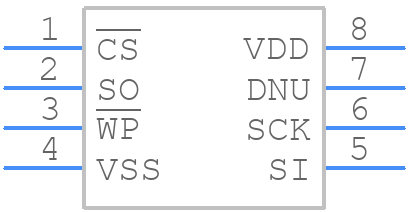

Symbol
CY15V108QI-20LPXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY15V108QI-20LPXI - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)
click to zoom
3D Models
CY15V108QI-20LPXI - Infineon - 3D model - Small Outline No-lead - 8-pin GQFN (3.23 × 3.28 × 0.55 mm)
click to zoom

CY15V108QI-20LPXI Details

  • Manufacturer Part Number:

    CY15V108QI-20LPXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    20 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    1000000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3.28 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.2,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00011 A

  • Standby Voltage-Min:

    1.71 V

  • Supply Current-Max:

    0.00175 mA

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15V108QI-20LPXI Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN215 'Layout Recommendations for QSPI NOR Flash Memories'. It's essential to follow these guidelines to ensure signal integrity, minimize noise, and optimize performance.
  • The CY15V108QI-20LPXI requires a specific power-up and power-down sequence to prevent damage or malfunction. It's recommended to power up VCCQ (1.8V) before VCC (3.3V) and power down VCCQ after VCC. Additionally, ensure that the clock signal is stable before accessing the device.
  • The CY15V108QI-20LPXI is rated for industrial temperature range, which is -40°C to +85°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • Infineon provides a Secure Boot Solution (SBS) for their QSPI NOR Flash memories, including the CY15V108QI-20LPXI. This solution enables secure boot and erase mechanisms. Consult the SBS documentation and application notes for implementation details.
  • The CY15V108QI-20LPXI supports various Quad-SPI interface settings. For optimal performance, it's recommended to use a clock frequency of 133 MHz, 4-byte address mode, and 1-1-4 or 1-4-4 data transfer modes. Consult the datasheet and application notes for specific settings and configuration details.
