Part Image

CY15V116QN-40BKXI - Infineon

Description: F-RAM F-RAM Memory Serial

Download CY15V116QN-40BKXI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY15V116QN-40BKXI model

Email notifications will be applied after download.

Send part feedback

Symbol

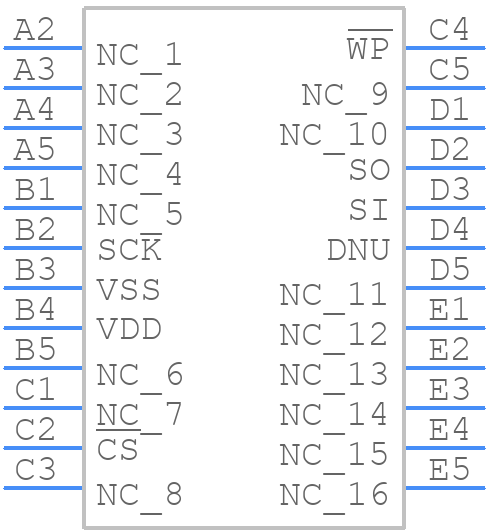

CY15V116QN-40BKXI - Infineon - PCB symbol

PCB Footprints

CY15V116QN-40BKXI - Infineon PCB footprint - BGA - BGA - 24L FBGA 8  6  1.2 mm BK24A package outline, 001-97209

3D Models

CY15V116QN-40BKXI - Infineon - 3D model - BGA - 24L FBGA 8  6  1.2 mm BK24A package outline, 001-97209

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY15V116QN-40BKXI
Part Number CY15V116QN-40BKXI
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24L FBGA 8  6  1.2 mm BK24A package outline, 001-97209
Released Date Nov 25, 2023
Last Modified Date Nov 25, 2023 3:48 AM UTC
Pinout / Pin List Click Here (Member Only)

CY15V116QN-40BKXI Details

Manufacturer Part Number:
CY15V116QN-40BKXI
Manufacturer:
Infineon Technologies AG

Trust Checks

System Verified

CY15V116QN-40BKXI Overview

Use the download button to access the CY15V116QN-40BKXI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY15V, or try a keyword search, such as FRAMs
