Please enter a minimum 3 letters or numbers
Technical Content
Part Image

CY2-143+ - Mini-Circuits

Description: MMIC Surface Mount Frequency Multiplier

Download CY2-143+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

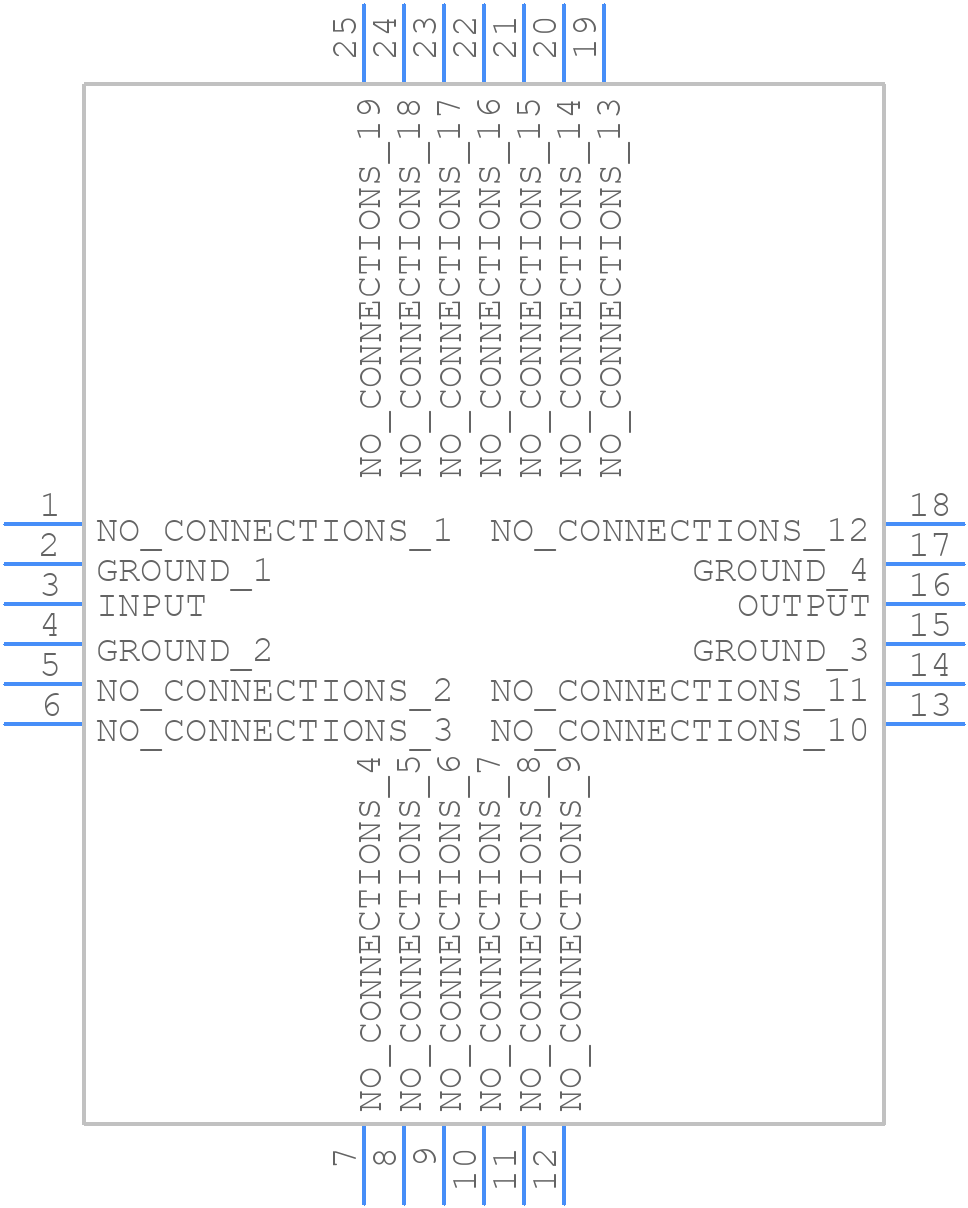

CY2-143+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
CY2-143+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 pin qfn
click to zoom
3D Models
CY2-143+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 24 pin qfn
click to zoom

CY2-143+ Details

  • Manufacturer Part Number:

    CY2-143+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    19.2 dB

  • Input Power-Max (CW):

    21 dBm

  • Operating Frequency-Max:

    14000 MHz

  • Operating Frequency-Min:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

CY2-143+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a 0.5mm width and a 0.8mm spacing from the device to the PCB edge. Additionally, a solid ground plane underneath the device is recommended to reduce radiation and improve performance.
  • The CY2-143+ requires a bias voltage of 5V to 15V and a bias current of 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is limited to prevent overheating.
  • The CY2-143+ can handle up to 1W of RF power. Exceeding this limit may cause damage to the device or affect its performance.
  • Common issues with the CY2-143+ include poor impedance matching, incorrect biasing, and overheating. Use a network analyzer to check the device's S-parameters, and ensure that the bias voltage and current are within the recommended range. Also, check for any signs of physical damage or overheating.
  • Yes, the CY2-143+ is designed for high-reliability applications and is built with high-quality materials and manufacturing processes. However, it's essential to follow proper handling, storage, and assembly procedures to ensure the device's reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY2-143+ Overview

Use the download button to access the CY2-143+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY2-1, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Parts related to CY2-143+

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
