- Part Number CY2-44+
- Manufacturer Mini-Circuits
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CASE STYLE: DQ1225
- Released Date Sep 8, 2021
- Last Modified Date Jan 10, 2024 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
CY2-44+ Details
-
Manufacturer Part Number:
CY2-44+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2018-01-12
-
Manufacturer:
Mini-Circuits
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Conversion Loss-Max:
23 dB
-
Input Power-Max (CW):
21 dBm
-
Operating Frequency-Max:
20000 MHz
CY2-44+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The CY2-44+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
-
Mini-Circuits recommends following the JEDEC J-STD-020D.1 standard for soldering and desoldering. The recommended soldering temperature profile is 260°C peak temperature, with a dwell time of 10-30 seconds.
-
While the CY2-44+ is primarily designed for linear applications, it can be used in switching applications with caution. However, it's essential to ensure that the device is not subjected to excessive voltage or current stress, and that the switching frequency is within the recommended range.
-
Common issues with the CY2-44+ include overheating, oscillation, and poor impedance matching. To troubleshoot these issues, check the PCB layout, ensure proper thermal management, and verify that the input and output impedances are matched correctly.
Trust Checks
Community Provided
System Verified
Community Approved
CY2-44+ Overview

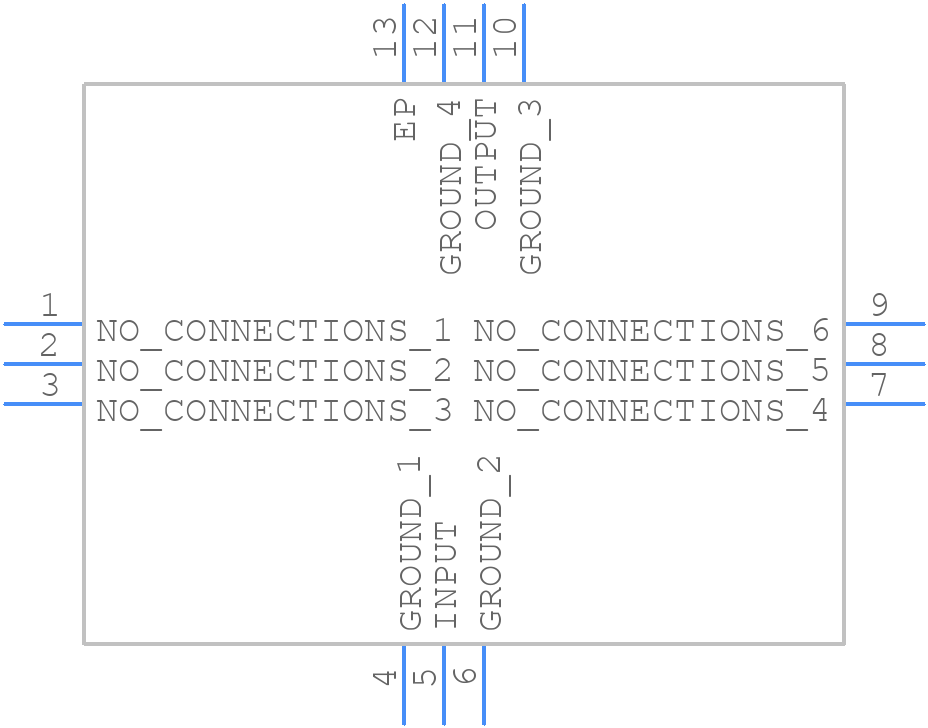

Use the download button to access the CY2-44+ schematic symbol, PCB footprint, and 3D model.
